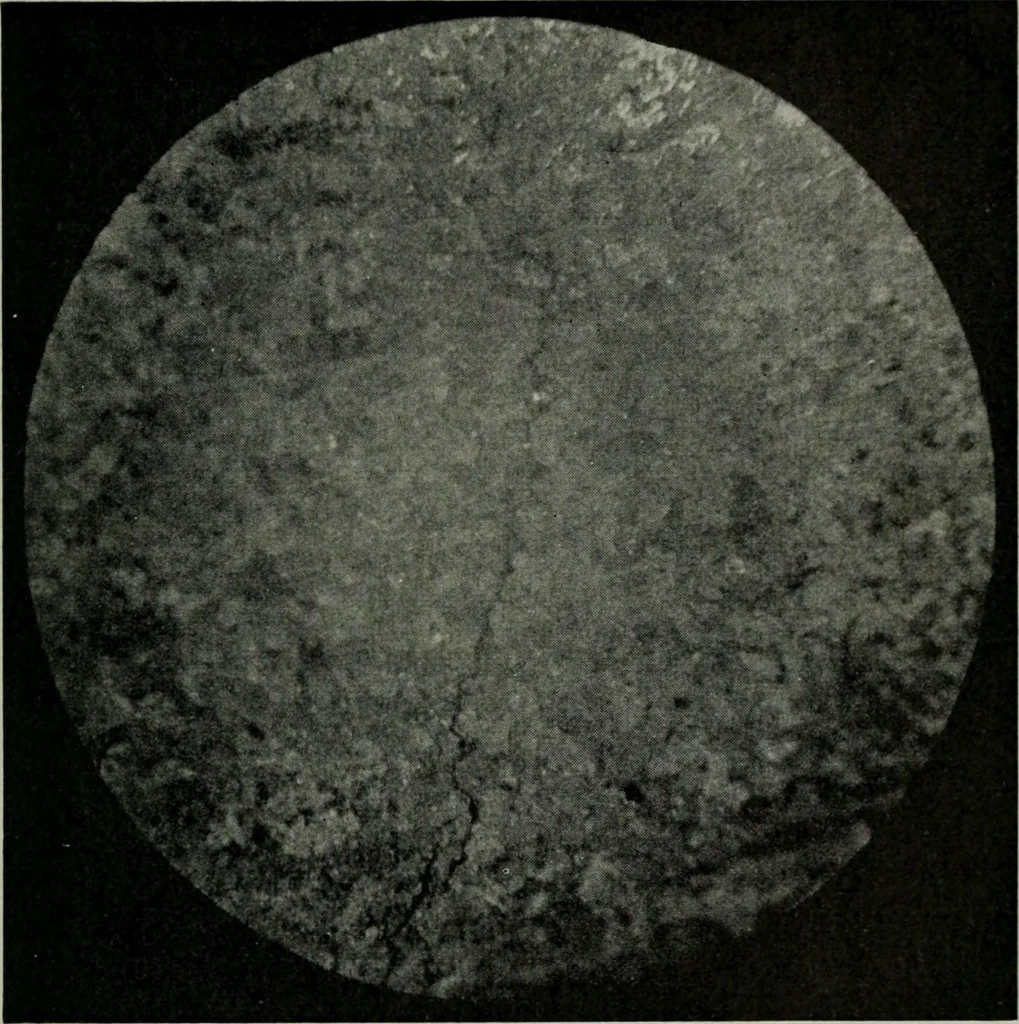

of theplate surfaces, although the examination of a sufficient number of rivetholes usually will determine whether the steel has been so affected asto make the vessel unsafe. A refinement in use with the magniscope isa camera which may be clamped to it for the purpose of micro-photo-graphing the… … Figure i—An embrittlement defect at about 100 magnifications. Thisis what the eye sees when using the regular Hartford Steam Boilermagniscope on a highly polished wall surface of a rivet hole. or the separations may be sufficiently large to be visible to the naked eye. When such conditions are…
