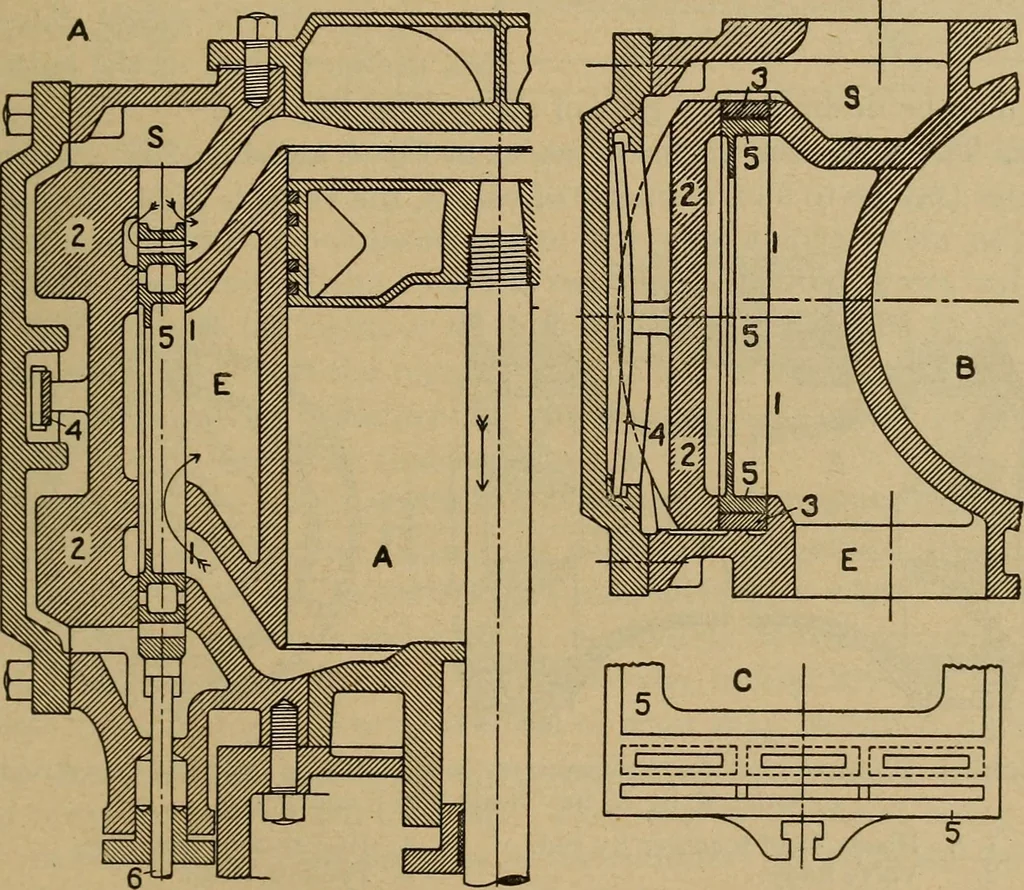

nce and tightness, and incidentally the possibilityof relieving excessive pressure in the cylinder. (6) Various Forms of Valve. — Figs. 200 to 202 and 259 to 263illustrate the following descriptive classification: 1. The short, single-faced valve, with long cylinder ports, Figs. 200201, and 262.… … Fig. 259. — The Balanced Flat Valve, with parallel faces and double admission.A, Horizontal section; B, Cross section; C, Face of valve. i* -^^!^^ ^^^* ^- Distance strips, a very little thicker2. Balance plate, very stifif against steam than the valve. pressure. 4. Spring, to hold plate in place…
