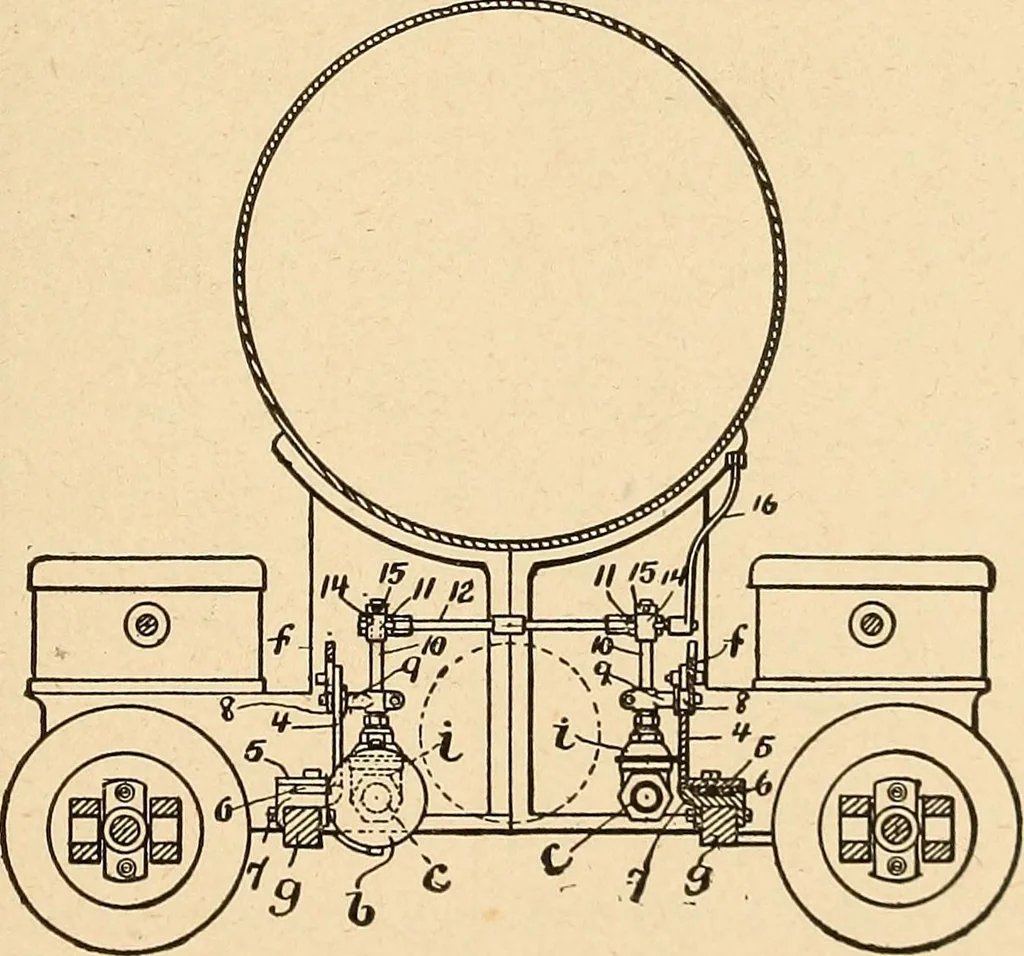

ical stems ofthe gate valves. As the slides have a horizontal LOCOMOTIVE APPLIANCES. 325 motion, imparted by connections from the lift shaft,the gate valves have their maximum opening whenthe reverse lever is in either extreme position, andtheir minimum opening when the reverse lever is inmid-gear.… … Fig. 3. Huff Automatic Variable Exhaust. (Front View.) by which the gate valves may be operated from thecab independently of their control by the reverselever when the engine is cut back. The parts of thisauxiliary apparatus are shown in Fig. 3, and marked11, 12, 13, 14, 15. It has been stated that…
