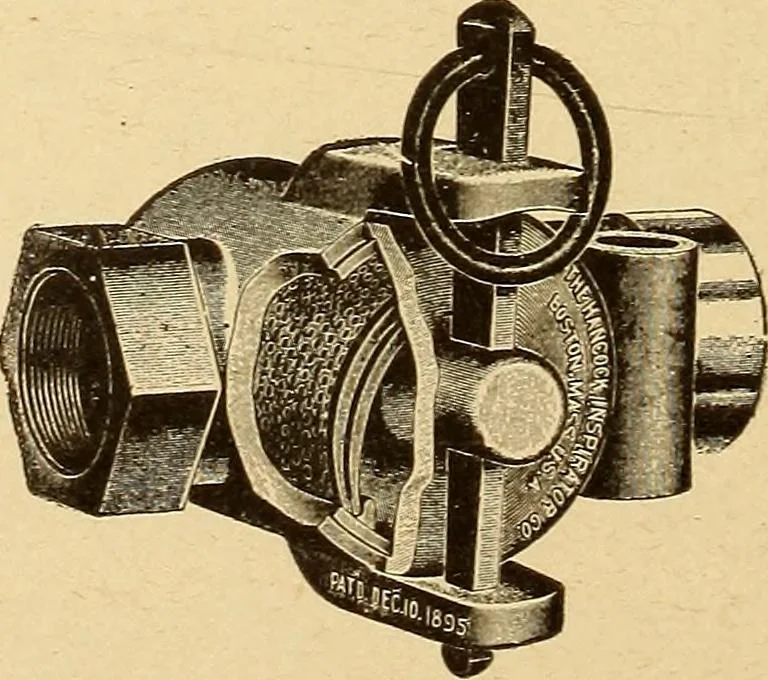

Fig. 4.The H-D Locomotive Strainer. THE HANCOCK LOCOMOTIVE HOSE STRAINER. The hose strainer illustrated by Fig. 5 consists ofa perforated copper plate in a metal frame which fitsinto slides in the body. The perforated copper plate … Fig. 5. Hancock Hose Strainer. rests at such an angle that coal or other sedimentfrom the tank will drop below the plate and not inter-fere with the water-way. By removing the tapered LOCOMOTIVE APPLIANCES. 355 key, the bonnet or cap can be easily taken off andthe copper plate removed and cleaned.…
