Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 704

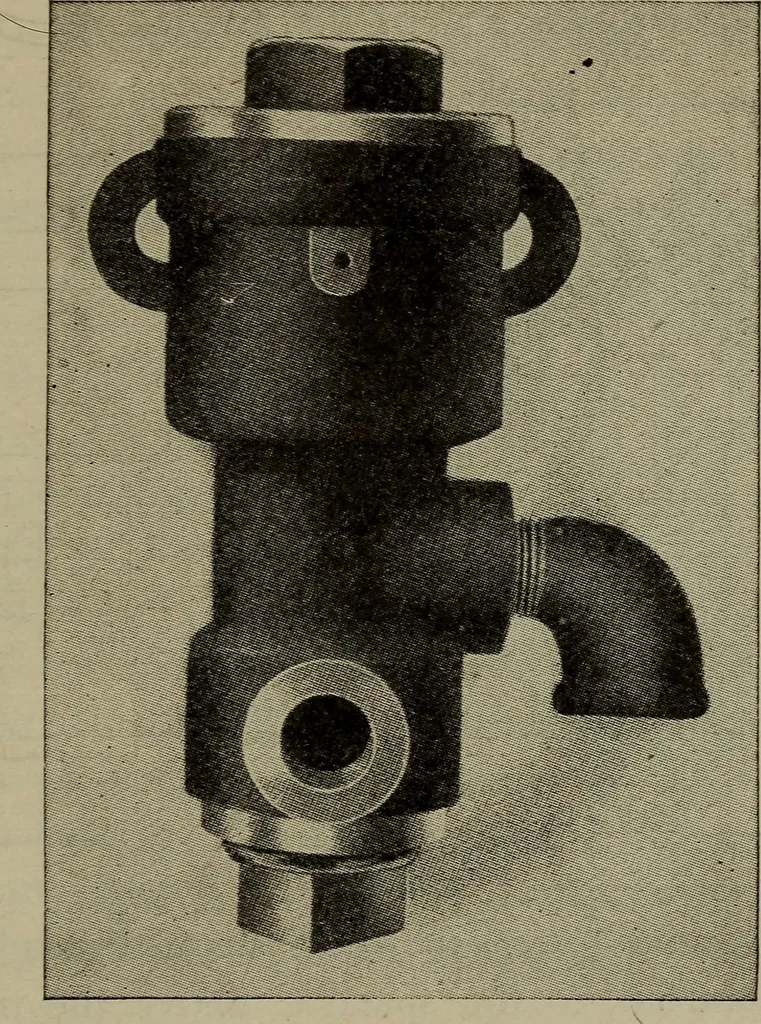

tem; PG 48 Body; PG 49 Cap jPG 94 Guide; PG 95 Valve; PG 99 iji union nut; PG100 ij4 union swivel; EV 60 Small union nut; EV 128Small union stud; EV 158 Union swivel (% copperpipe) ; SA 6 Leather seat; SA 39 Valve stem nut; AV 28Hand wheel nut. ACCELERATOR VALVE, This valve is designed to assist… … Fig. 287. Accelerator Valve. The Valve is perfectly automatic in its operation, be-ing governed entirely by the volume of air in the brakepipe, operating only when the train is of such a length 65i 652 LOCOMOTIVE ENGINEERING as to warrant the use of same. The operation is similarto that of the…
Locomotives
