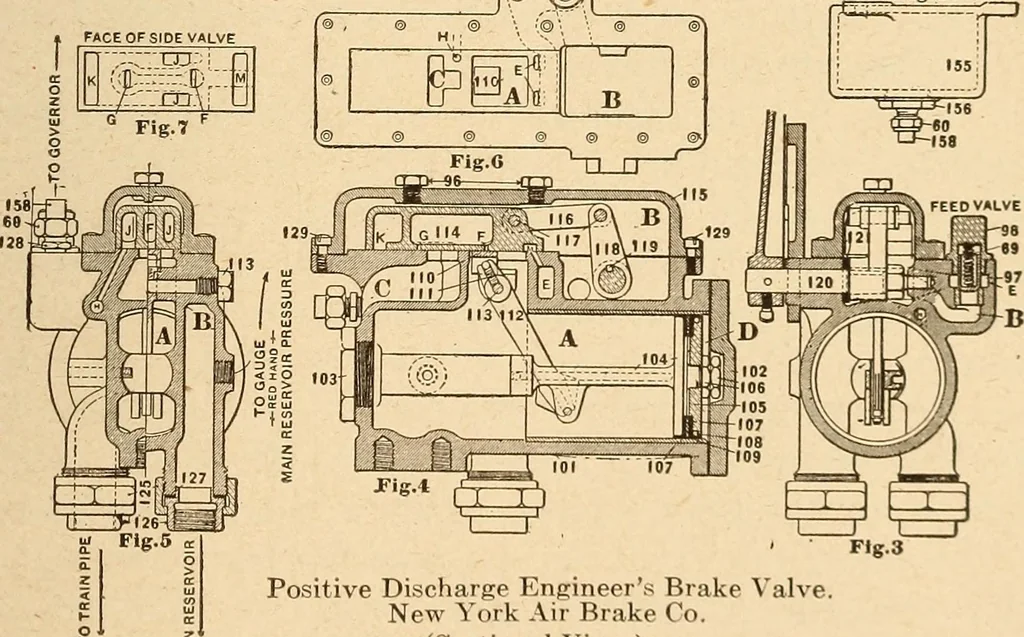

LOCOMOTIVE APPLIANCES. 359 The above engraving shows the outside appearanceand inside construction of the valve when seen fromdifferent points of view. Figs. 1 and 2 are externalviews, rear end and side, respectively. Fig. 3 is across-section through the feed valve (rear view).Fig. 4 is a section… … Positive Discharge Engineers Brake Valve.New York Air Brake Co.(Sectional View.) valve seat, Fig. 7 shows the face of the slide valve.Fig. 8 is the gauge connection. The Principal Parts and Their Duties. Referringto Fig. 4, the chamber H is connected to themain reservoir. The chamber A is connected…
