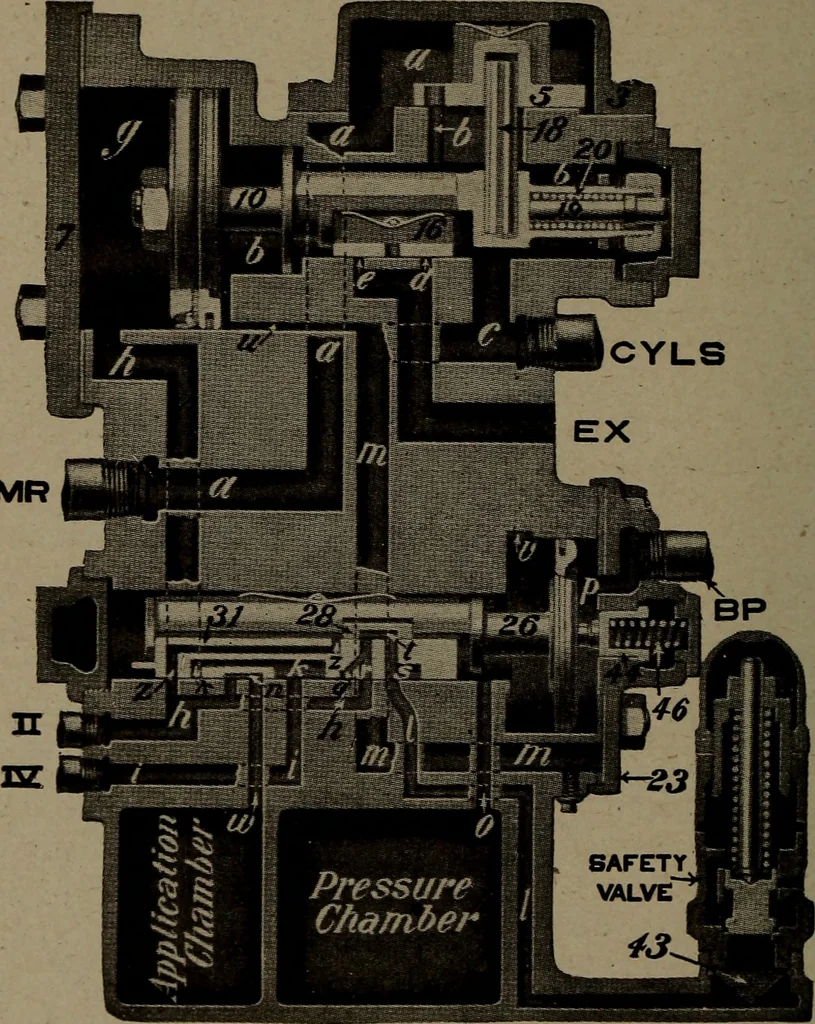

n 26 is prevented from moving out furtherby coming in contact with the graduating sleeve 44. Pres-sure chamber air will then flow to the application cylinderG on the left of the piston 10, also through cavity N in theslide valve and port W in the seat to the application cham-ber, at the same time… … Fig. 34. Automatic Service WESTINGHOUSE AIR BRAKE 257 sure on the pressure chamber side of the piston 26 is slight-ly less than brake pipe. When the piston and graduatingwill move to the left until the collar on the equalizing pis-ton stem engages the end of the slide valve. The graduat-ing valve…
