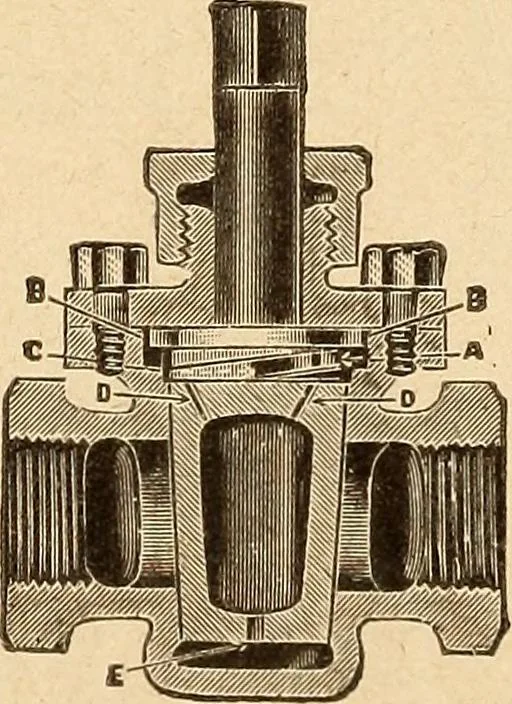

not abrade LOCOMOTIVE APPLIANCES. 373 their surfaces, as ordinarily happens with ordinaryvalves. THE HOMESTEAD STRAIGHT-WAY VALVE. This valve is so constructed that when it isclosed it is at the same time forced firmly toits seat. This result is secured by means ofthe traveling cam A through which… … Fig 3Homestead Straight-Way Valve. which it is placed, and the plug will be free to be easilymoved. A quarter of a turn in the direction forclosing it causes the cam to rise and take a bearing onthe upper surface of the chamber, and the only effectof further effort to turn the stem in that…
