Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 46

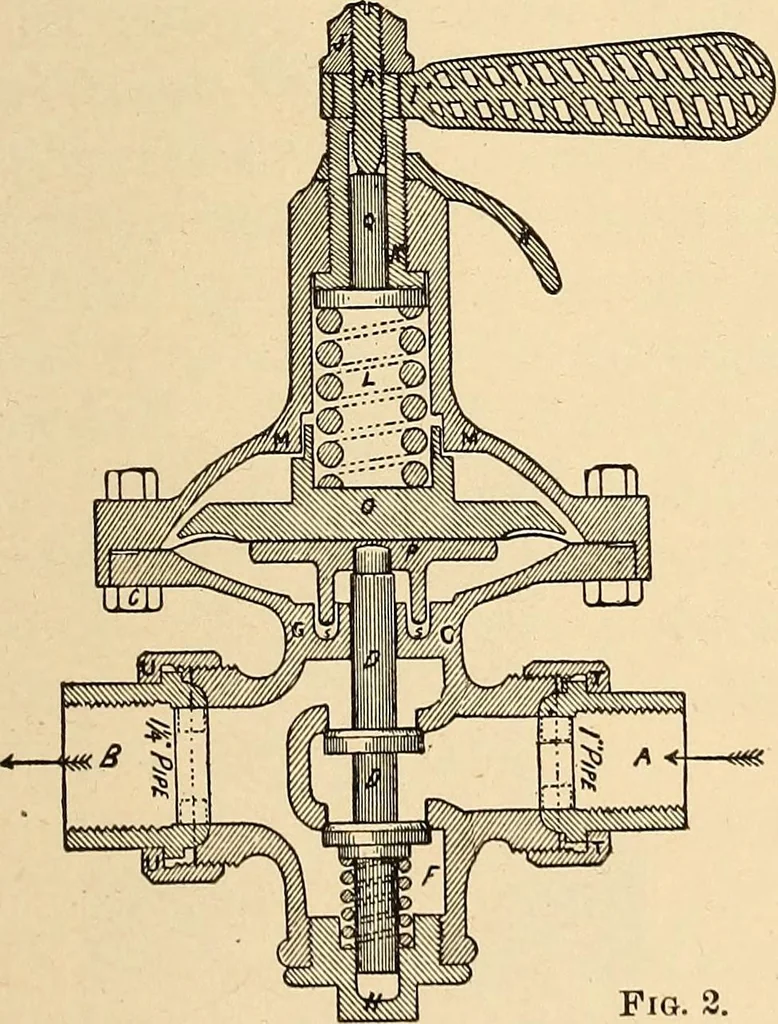

ich holds the regulatingscrew firmly in any given position. The set screw(R) is provided as a check on the maximum or mini-mum amount of pressure required as it can be seen LOCOMOTIVE APPLIANCES. 37 that the play of the spring (L) is controlled by thisset screw (R). Spring (F) helps to guide the… … PARTS OF REGULATOR. A.— \ inch Inlet Union Nipple.B.—i% inch Outlet Union Nipple.C—Bolts and Nuts for Dome and Body-Z).—Balance Spindle with Hard Seats./.-Bottom Spring.G.—Body of Regulator.#..—Bottom Plug.J — Handle./.—Top Nut.K — Hollow Screw./.—Top Spring.M.—Dome of Regulator.N.—Lock. Nut.O.—…
Locomotives
