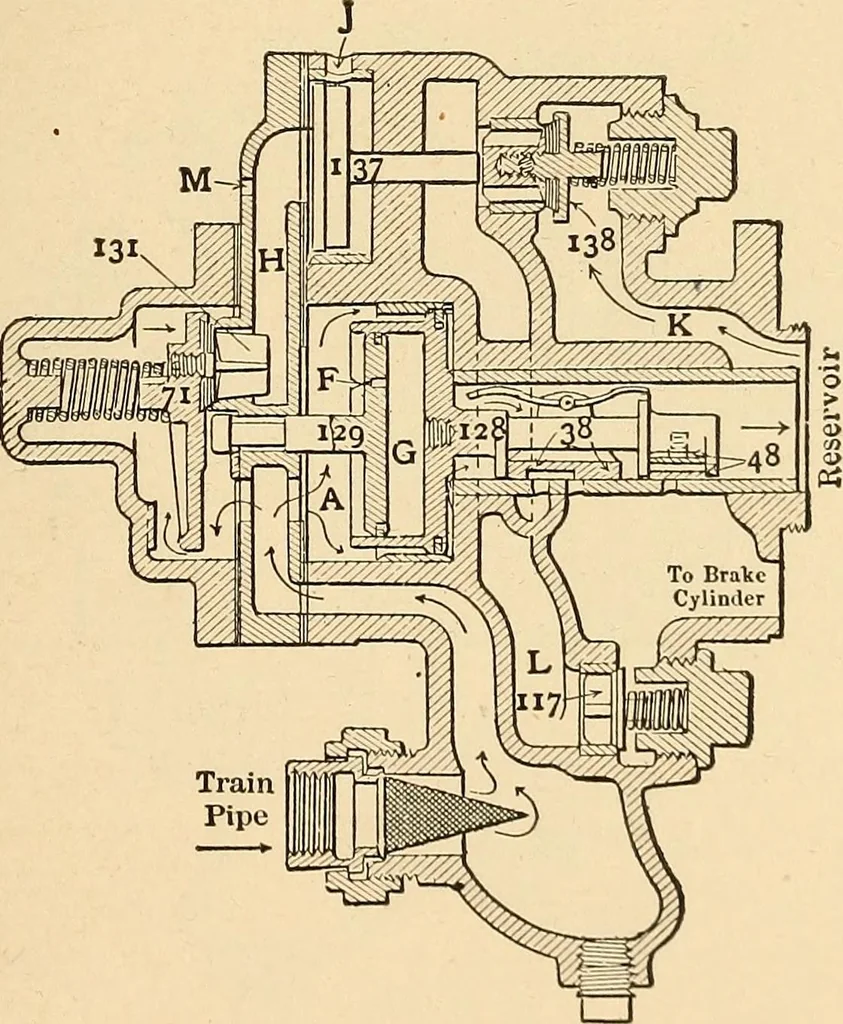

impulse is transmitted from car to car with greatrapidity. The service parts occupy the central portion ofFigs. 3, 4 and 5. The auxiliary reservoir is chargedthrough the usual groove {B). Exhaust valve (38 ) LOCOMOTIVE APPLIANCES. 57 and graduating valve (48 ) cover the usual ports, andare moved by… … TrainPipe Illustrative Model of New York Quick Action Triple Valve.(All valves in normal positions). tions of the drawing, and are inoperative under ordi-nary conditions. Vent valve (71 ) is held to its seatby spring (132 ), assisted by train pipe pressure, andcan only be opened when piston (129 )…
