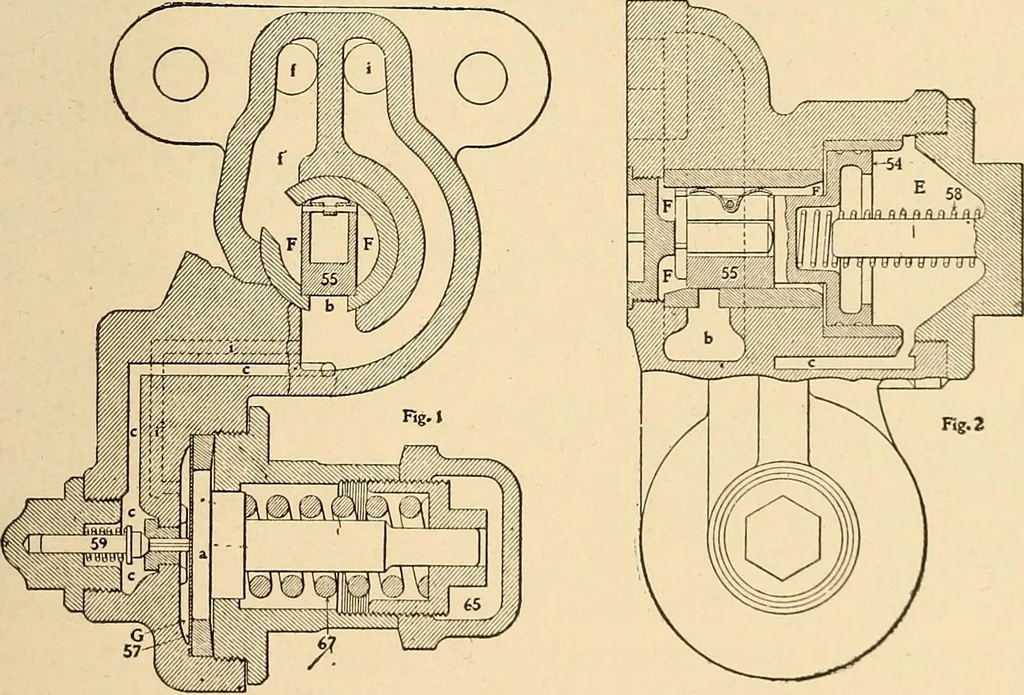

eration of the Engi-neers Brake Valve the reader is referred to The Science of Rail-ways, where they may be found by reference to the GeneralIndex. LOCOMOTIVE APPLIANCES. 63 position. The passage lettered ii is an extension ofthe corresponding train-line passage in the brakevalve. Chamber E is… … Fig. 1. Fig. 2. Wcstinghousc 1900 Food Valve or Train Line Governor.Slide Valve Pattern.54—Supply Valve Piston. 59—Regulating Valve. 55—Supply Valve. 65- Regulating Nut. 57—Diaphragm. 67—Regulating Spring 58—Supply Valve Piston Spring. voir pressure in chamber F acting on the other sideof this…
