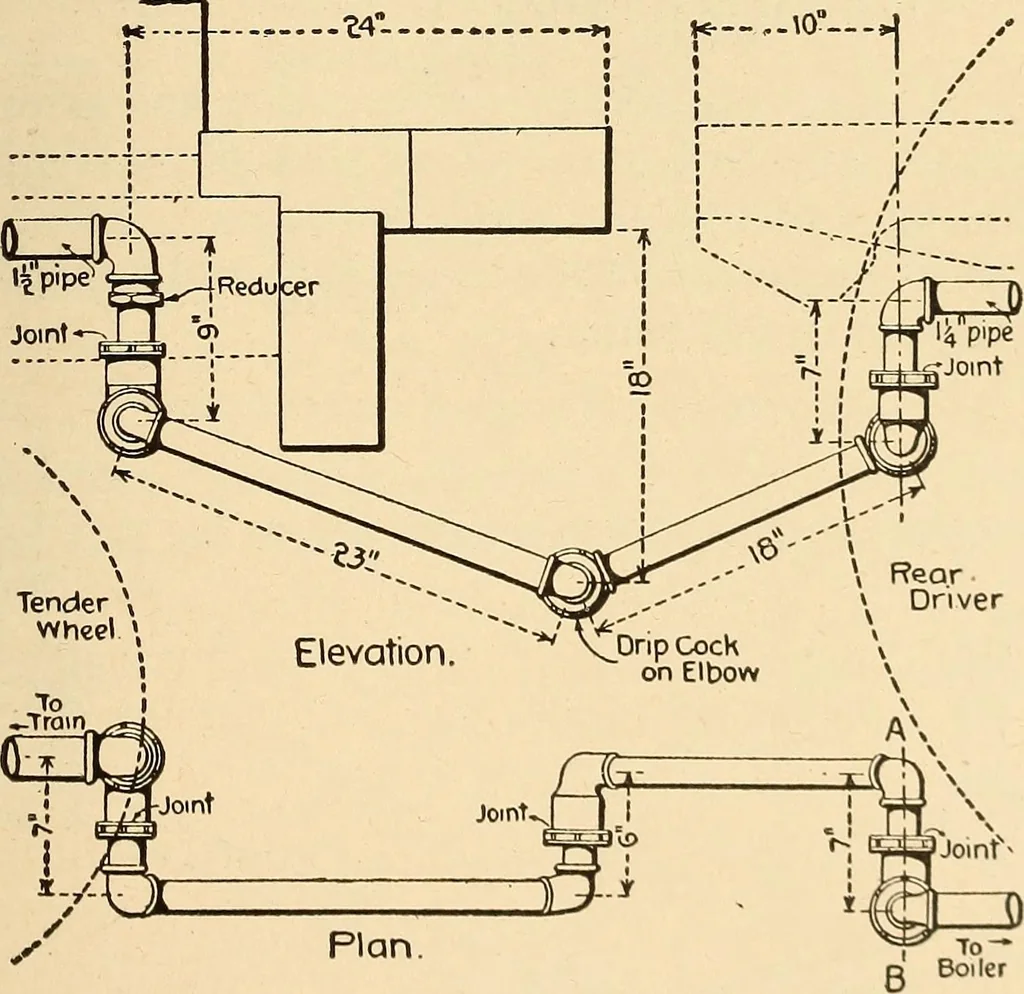

Swivel Joint. Mclaughlinsflexiblemetallic CONDUIT. For conveyingsteam or air betweenlocomotive and ten-der. The joints in thepipe are made byswiveling elbows. LOCOMOTIVE APPLIANCES. 85 A nipple, with an enlarged end, is inserted in the boreof the elbow, and is free to turn therein, but is held… … Rwl Fig. 2. Plan and Elevation of Steam Heal Conduit as applied between Locomotive and Tender. While adapted to and used for a large number ofpurposes requiring flexible connections, the mostsevere test has been made in connecting locomotivesand tenders for steam heating. In this exacting sen -ice…
