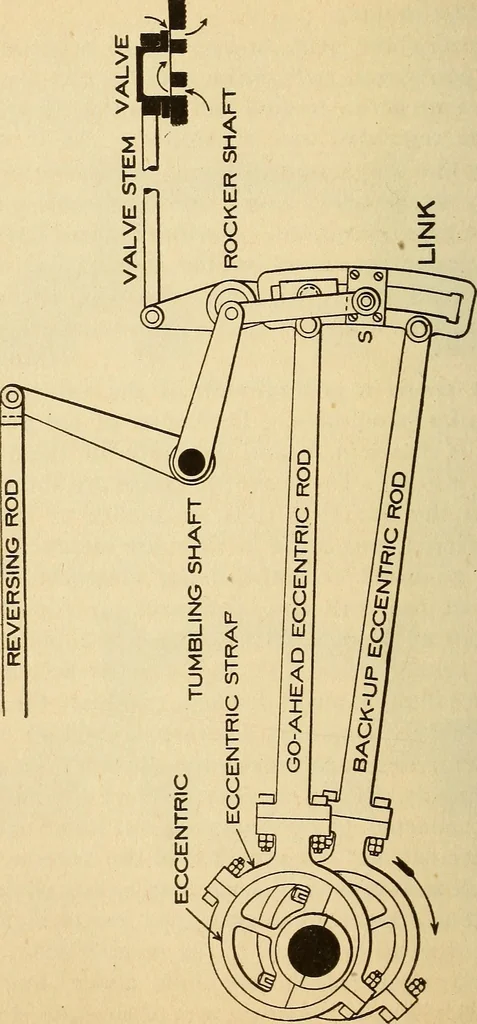

d ofthe hanger being attached to the shorter arm of thetumbling shaft, while the other arm of the tumblingshaft is connected to the reversing rod which extendsback to the cab and is connected to the reverse lever. The link and ends of the eccentric rods connectedto it are thus supported and are… … VALVES AND VALVE GEAR 127 and the valve rod is connected to the top arm of therocker. The rocker shaft rotates in the rocker box,which is rigid, and the motion of the eccentric is thusindirectly imparted to the valve; that is, the motionof the eccentric is reversed by the rocker arm. Thisis termed…
