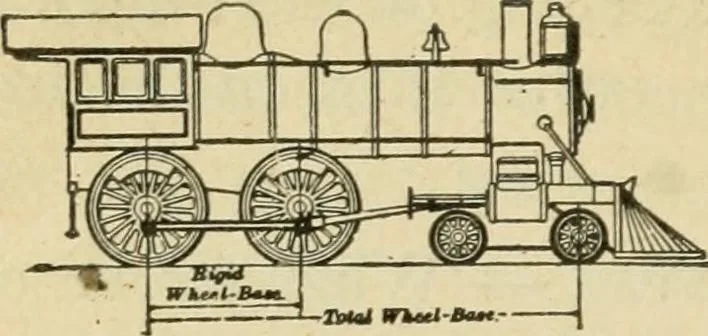

mula obtainedfrom the above: Taking size of cylinder and driver with same pressure,which is 85 per cent of boiler pressure, we have, 56X18.S80 S=- 17^X85% of 18056X18,880=1,057,280.172=289,85% of 180=153.Then 153X289=44,217, and 1,057,280-7-44,217=23.9-f-, or 24-inch stroke of piston for above… … -aui wuti-Bc-—American, or Eight-Wheeled.
Locomotives
