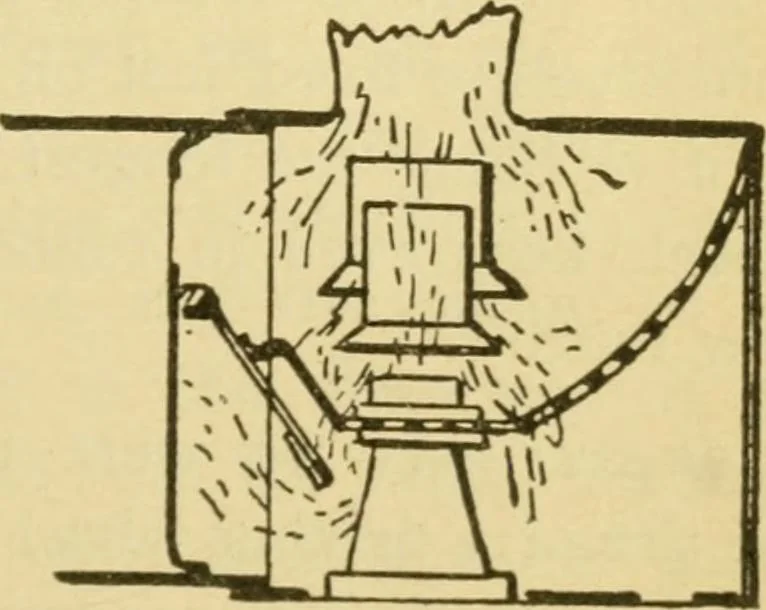

Fi^ 1. F3. a. from the base of the stack will increase the draft; raisingthe sleeve and lowering the pipe will decrease it. Ob-serve Fig. I with a pipe and sleeve that extends from the 206 LOCOMOTIVE BREAKDOWN QUESTIONS base of the stack to the base of the exhaust pipe, the dot-ted and broken lines…
