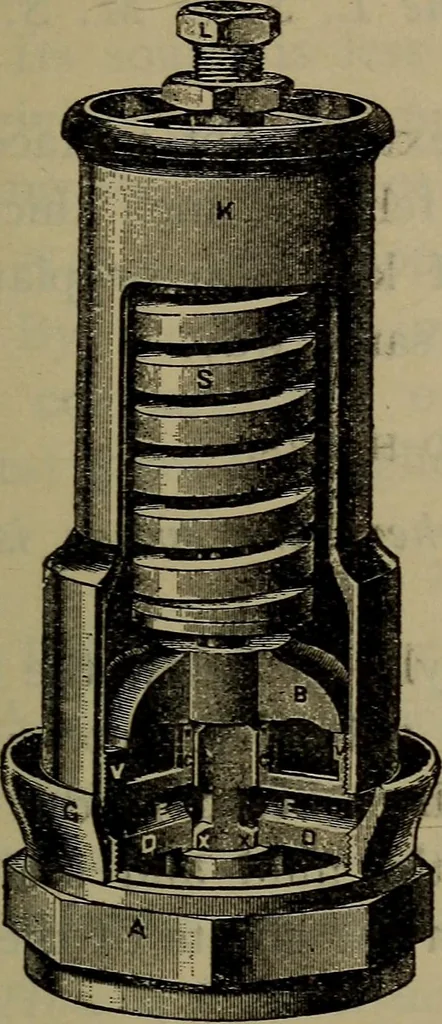

scapes from the safety-valve lessened, to prevent frightening horses when trains arestanding at stations, and from being a general nuisance? A. By a muffler, one form of which consists of a wire coilthrough the interstices of which the steam escapes, makingmuch less noise than where it has to pour… … Fig. 102. Crosby Locomotive Fig. 103. Meady Muffled Locomo-Pop Safety-valve. tive Pop Safety-valve. have a central vertical pipe with a large number of L-shapedtubular branches pointing upward. In all, the principle is thesame: to give the steam a very large area of escape, dividedup into as many…
