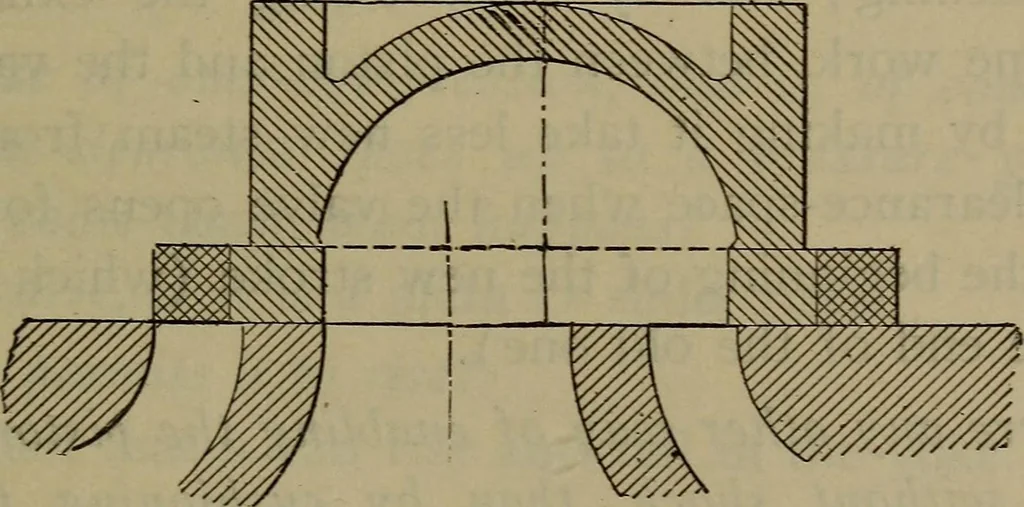

Fig. 135 Slide Valve with Lap Added. … Fig. 136. Slide Valve with Lap Added. the end ports. In Fig. 135, where the valve is in mid-position,the outside lap is represented by the extra heavily hatchedportions at both ends. In Fig. 136 there is no lap. Q. What is the object of outside lap? A. To close the end ports to steam before the…
