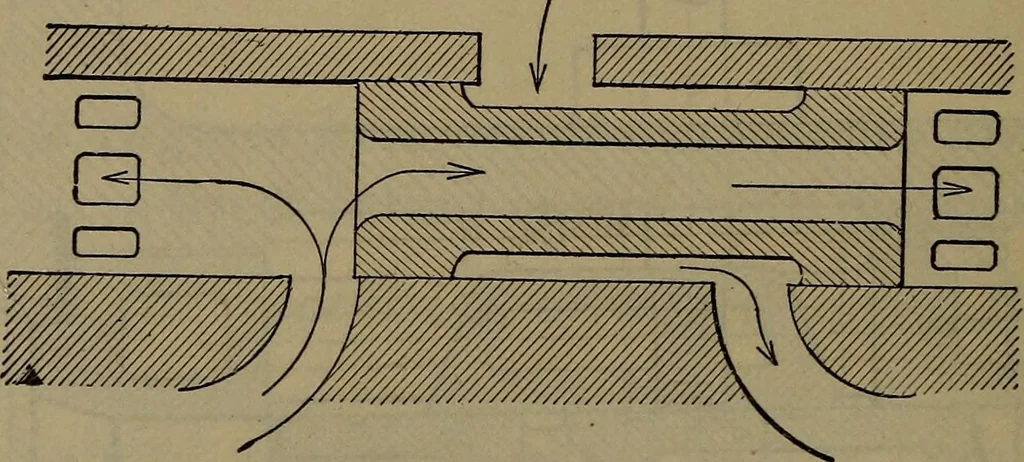

s are used; (2) the exhaust steamcoming in contact with the valve throws it out of its normalposition, wearing the valve gear and causing pounding of rodsand boxes. Q. How may this be avoided? A. As shown in the Schmidt valve here illustrated, wherethe bushing is hollow and warmed by the incoming… … Fig. 149. Piston Valve, Q. Sketch a hollow piston valve and show how the exhaustescapes? A. As in Fig. 149; the admission is between the valve ends,the exhaust at both chest ends. Q. What is one of the disadvantages of the piston valve asregards lubrication?
