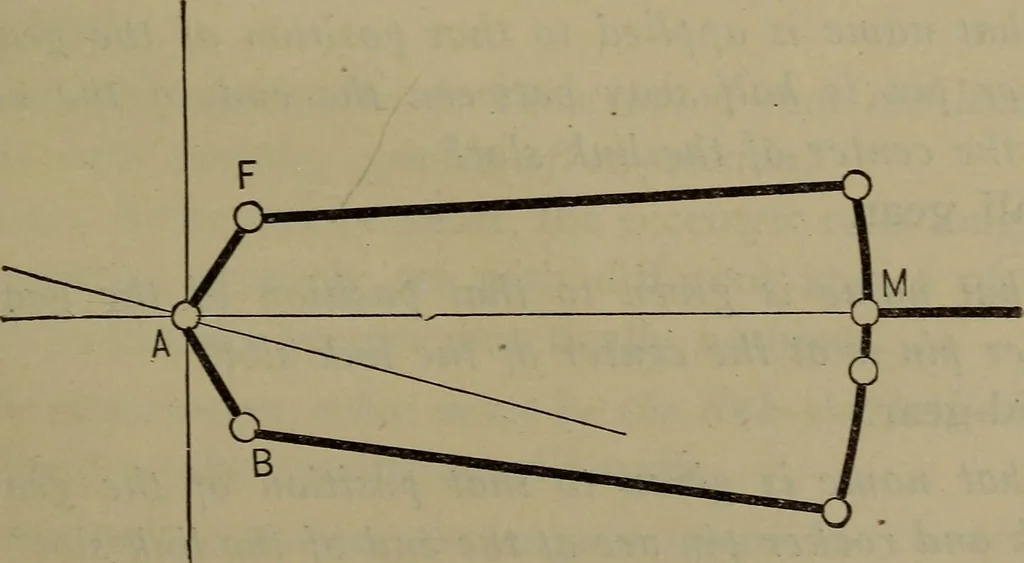

Fig. 156. Stephenson Link, Crossed Rods. 0. Are the eccentric rods of the Stephenson valve gear everso arranged as to be crossed instead of open or uncrossed,zchen both eccentrics are on the same side of the axle as thelink? A. Yes; in some engines they are arranged so as to be as … Fig. 157. Stephenson Link, Open Rods. 256 LOCOMOTIVE CATECHISM. shown in Fig. 156, in which F is the center of the forwardeccentric sheave, and B the center of the backing eccentricsheave; A being the axle center, and M the lower rocker pin.In Fig. 157, the ordinary method of arrangement in…
