Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 305

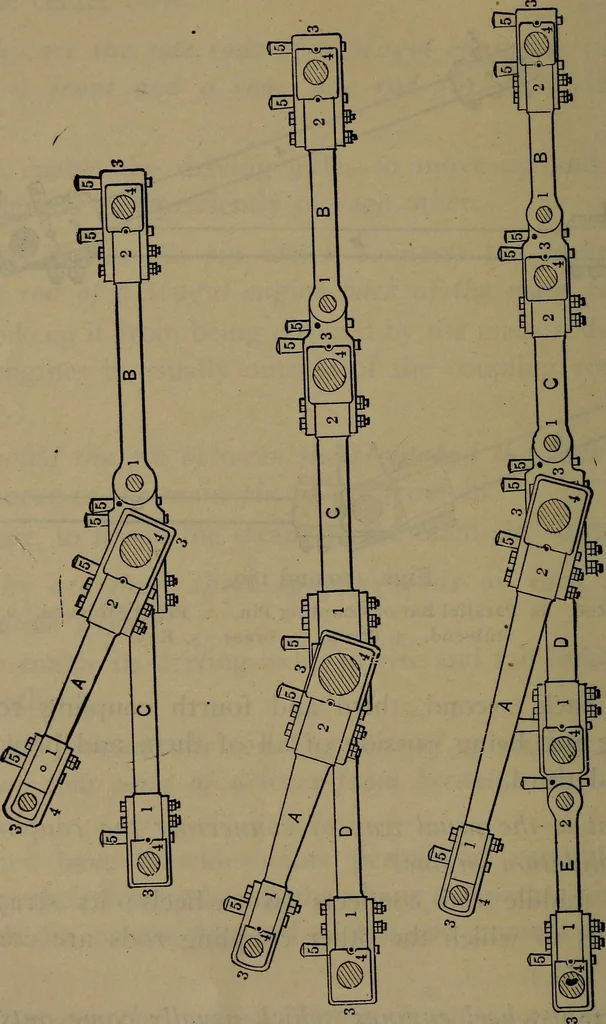

coupling rodsof a consolidation engine? A. The middle rod connects two wheels; its straps haveforged ends to which the other coupling rods are connected.(See Fig. 182.) Q. In eight-ziheel engines, which usually come outside, themain rods or the coupling rods? A. The coupling rods; except on… … Figs. 181, 182 and 183. Rods, Straps and Brasses. A. Main-rod. B. Back Parallel Rod. C. Second Parallel Rod. D. Third Parallel Rod. K. Fourth Parallel Rod. 1. Front Stub-end. 2. Back Stub-end. 3. Strap. 4 Brass. 5. Key. CONNECTING ftOD. 299 the coupling rod pin; or back of and close to the pins in…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
