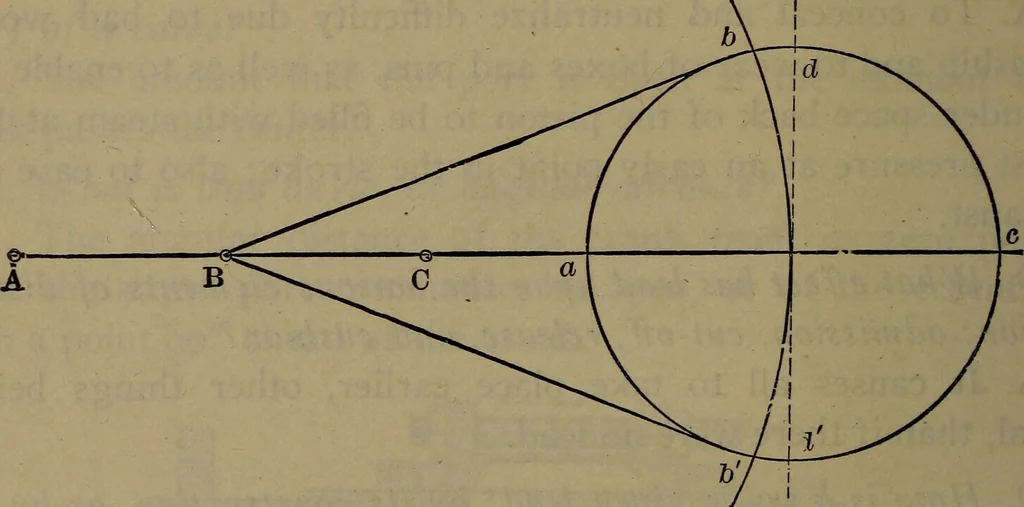

same amount of lap at each end, willcut-off take place at the same point in both cylinder ends? A. No; as the connecting rod introduces irregularities be-tween the piston movement and that of the valve. Q. What is the nature of these irregularities? A. When the crosshead is at C, the out end of the… … Fig. 231. Effect of Angularity of Connecting-rod. b. When the crosshead is at A or inboard stroke end, thecrank pin will be at a, or the half point of its path; and on thereturn stroke, when the crosshead is again at mid-stroke, at B,the crank pin will have made less than the quarter circle from c,…
