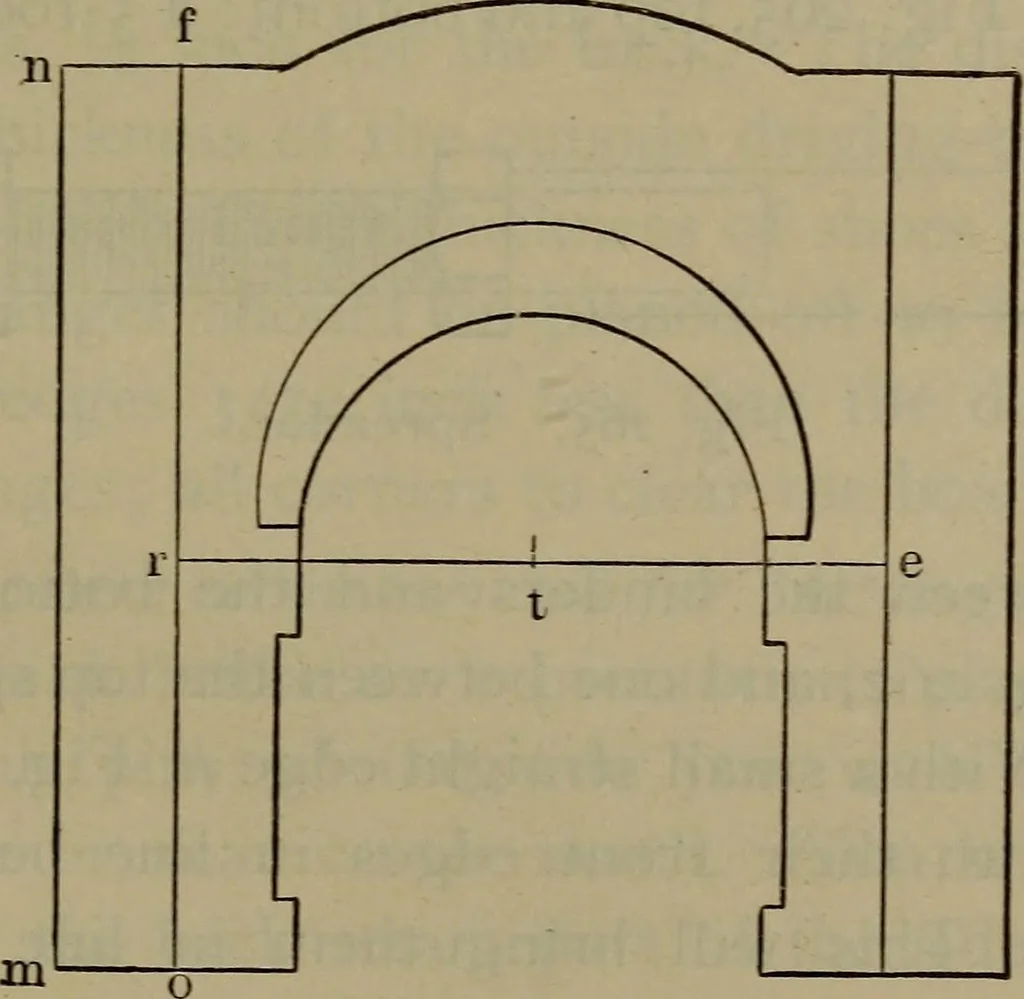

between rod-brass centers) and is to allowfor influence of temperature. To find /, Fig. 262, in each brass is put a piece of wood onwhich to mark the center; the effective length of the rod istrammed, and the tram then shortened 1 32 inch. Fromcenter // an arc is scribed, crossing b b in j /, and… … Fig. 264. Driving Box. The driving box being calipered with 7 and k as centers, thearc / on the frame and lx on the binder are scribed, with halfthe box diameter as radius. Then the shoe face must lie in a 394 LOCOMOTIVE CATECHISM. straight line with / and /, in order for the axle center t to…
