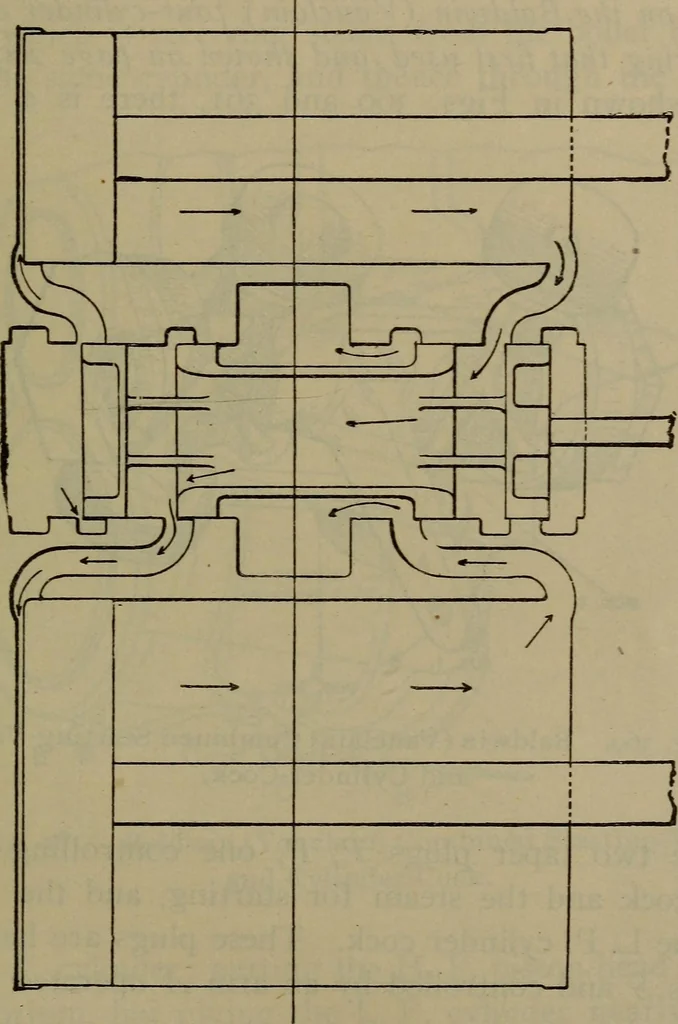

the plug. The steam enters the H. P. cylinder and drivesthe piston therein, on the return stroke passing through acircular groove in the center of the valve, and being dis-charged through the exhaust port and the exhaust pipe. (SeeFigs. 356 to 359 inclusive.) The same operation takes place VAUCLAIN… … Fig* 359- Vauclain Compound. A. The pistons are connected and play together in the samedirection at the same time; their position and the relativeposition of the valve with reference to them being shown inFigs- 357. 358, and 359. In Fig. 357, both pistons are at the 552 LOCOMOTIVE CATECHISM.…
