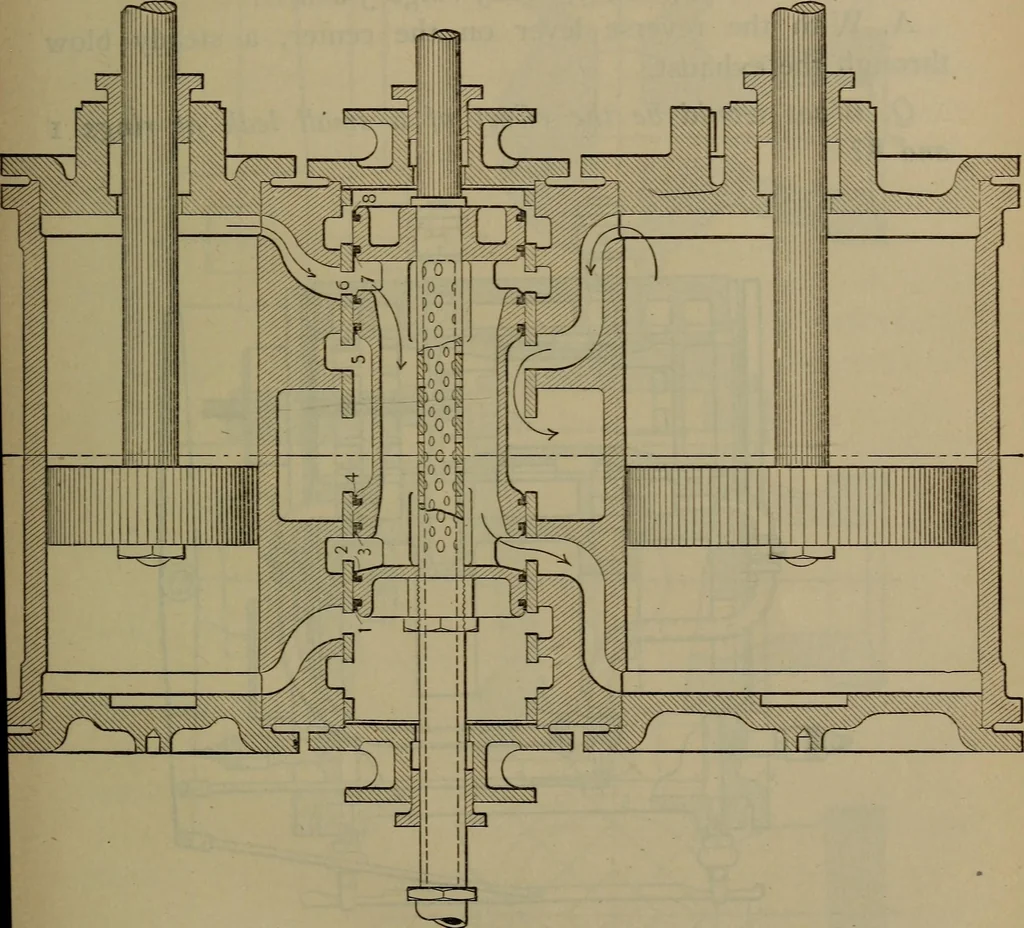

Q. Should all the motion work prove right and the lameexhaust still continue, zvhat then? A. The valve packing rings and cylinder packing ringsshould be tested. Q. Referring to Fig, 376, which rings govern steam admis-sion to the H. P. cylinder? ACCIDENTS TO VAUCLAIN COMPOUNDS. 565 A. Nos. I, 2, 7,… … Fig. 376. Showing Valve Packing Rings. ends of the valve. If rings 1 and 8 leak, the steam will blowthrough and fill the valve arch and both ends of the H. P.cylinder; and blow steadily at the H. P. cylinder cocks orindicator-plug holes; or where there is a relief valve on theend of the extended…
