Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 731

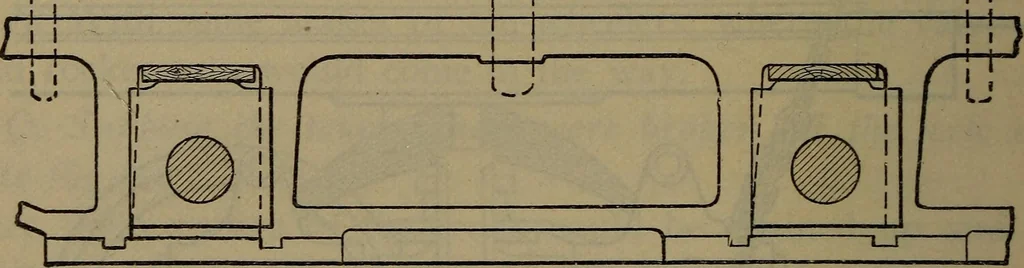

e back wheel, 716 LOCOMOTIVE CATECHISM. and chock between front driver box and frame. (Fig. 413.)Q. What is to be done with a broken back-driver spring or spring hanger on an eight-wheeler with springs above the boxes? A. Run the back driver up on a four-inch wedge, pry up the back end of the… … Fig* 413. Broken Springs. Q. Can a broken back spring or hanger always be handledso? A. Usually, although there are times when the reverse levercannot be moved. In such a case I would have to raise theengine with jacks. Q. Which driver springs usually give the most trouble whenbroken? A. The back…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
