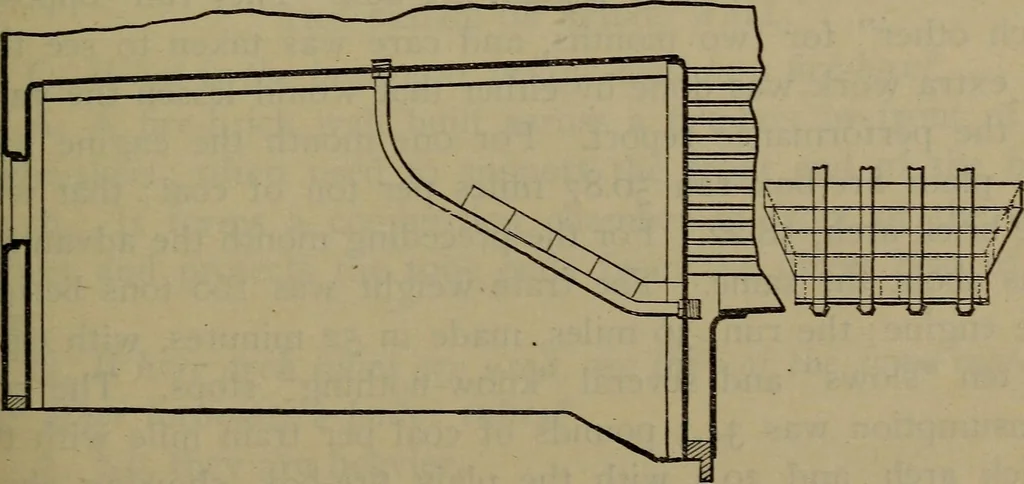

Figs. 5S and 59. Brick Arch on Water-vubes. … Fisrs. 60 and 61. Brick Arch on Water-tubes. 78 LOCOMOTIVE CATECHISM. grate a diagonally-placed baffle-plate, preventing the flamesand combustion gases from the front of the grate going di-rectly into the lower tubes, and compelling them first to flowbackward and upward; thus not only giving them…
