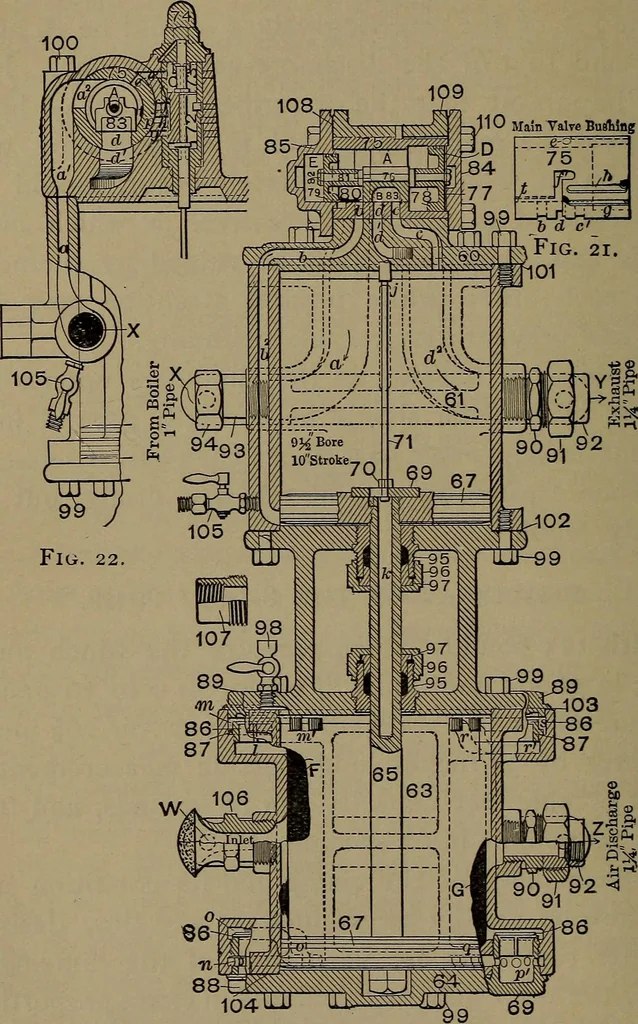

es long (outside measurement)—about 9 cubic feet capacity—in 88 seconds, and from20 to 70 pounds in 62 seconds. The efficiency of the pump and its condition maytherefore be readily ascertained at any time desired.If other reservoirs are used than of the dimensionsgiven, the duty may be calculated… … 9XIxcn Air Pump.Fig. 20. THE WESTINGHOUSE AIR-BRAKE. 261 pistons 77 and 79 of unequal diameter mounted onrod 76, while a slide-valve 83, of the D type, held inposition between them, provides for the distributionof steam to the upper and lower sides of main steam-piston 65, as required. Steam enters…
