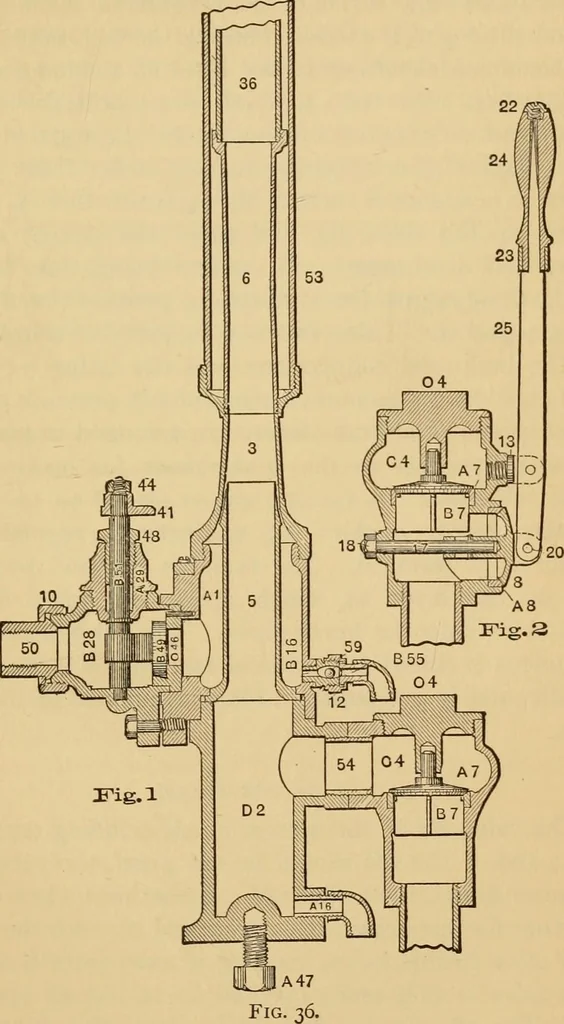

e deck where it is located when used tooperate driver brakes. The ejector is operated on thesame principle as the water injector, only it is used tolift air instead of water. A cross-section of the in-jector is shown in Fig. 36. When the engineer wishesto apply the brake, he pulls the handle 41… … 344 LOCOMOTIVE ENGINE RUNNING. rated in passing through the contracted opening leftround the to^D of the tube. Passing through tubes 3 and6, the steam shoots up in the form of a column with ahollow base ; the tube 5, which is connected with thepipes and diaphragms on the train, forming this…
