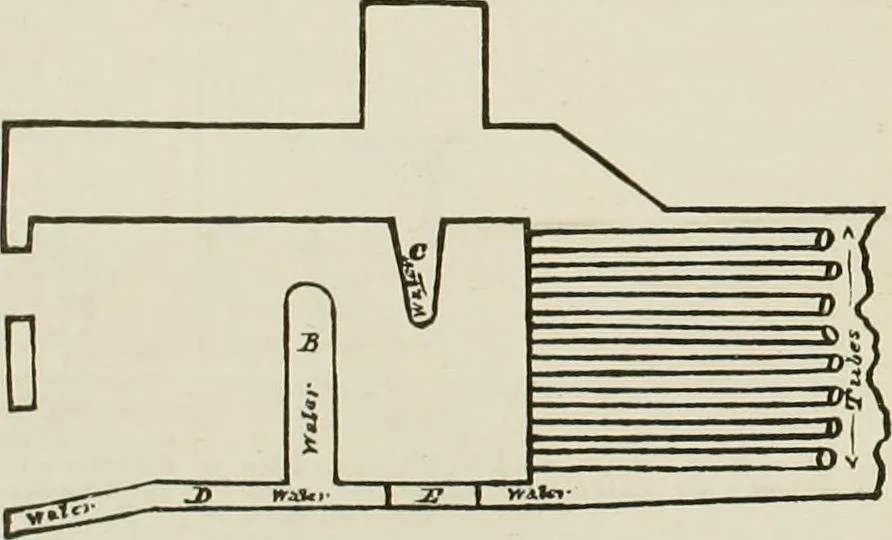

us boilerin 1857. His idea was to place the fire-box above theframes and axles, and thus get the weight betterdistributed, and admit of placing the forwarddriver, in 10-wheeled engines, far enough back toadmit of the main rod being coupled toil, insteadof to the etnler jiair of wheels; but his main… … Some Oi,u Fii;E-itux Patents. to back of thu riar axle, where It dropped into abox with slides unirked P. Well aliwul in Iho fire-box there was a waterwall built entirely across the box as at A ; this wasfull of short lubes, through which the fiamespassed to the combiution chamber marked C.…
