Hill, John A. (John Alexander), 1858-1916, Sinclair, Angus, 1841-1919 · New York : American Machinist Pub. Co · leaf 807

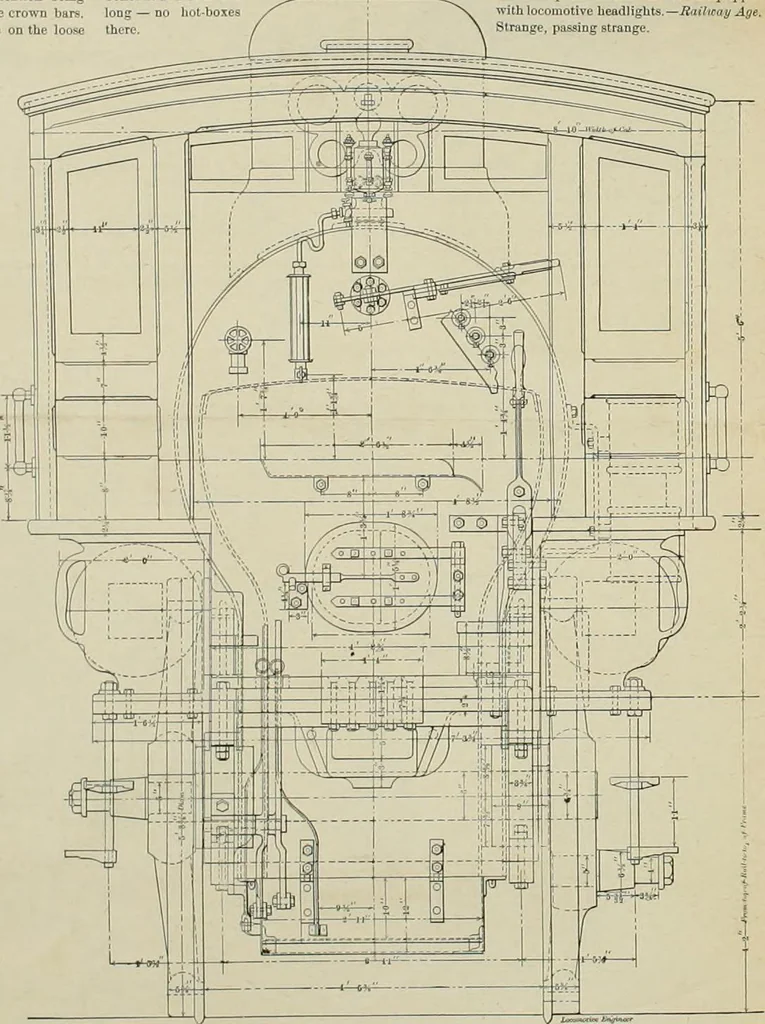

sually finished, are painted light gray. The cabs are roomy and convenient. The menare made comfortable by cushioned seats and backrests, and the levers and cocks are arrangedas though they were to be handled, and notlosee how evenly they could be distributedover the boiler head. Every Rock Island… … Rear View. The details of the rods, showing thoir de5ig:nand finish, will be published next month. The valve travel is oj; outside lap, I, and in-side lap. 3^. The ports are lixl7, the exhaustport being 2i. The valve is of the Allen or trick port style,iiud is balanced by two round rings on lop…
Railroads · Locomotives
