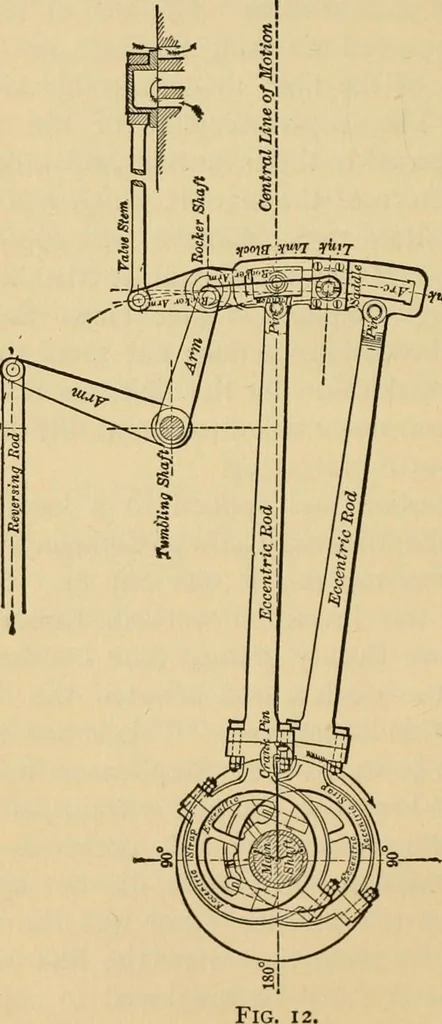

his invention was not extravagantly paid for. The capability which the link possesses of varyingthe steam admission and release, did not appear to beunderstood by the inventor ; nor was the mechanicalworld aware, for some time after the link was broughtinto use, that it could be employed to adjust… … ^.•r link is a slotted block curved to the arc of a circle, with THE SHIFTING LINK. 233 a radius about equal to the distance between the centerof the driving-axle and the center of the rocker-pin.The general plan of the link-motion is shown in Fig. 12.Fitted to slide in the link-slot is the block…
