Locomotive engine running and management : a treatise on locomotive engines, showing their performance in running different kinds of trains with economy and dispatch; also directions regarding the care, management, and repairs of locomotives and all their connections (1888)
Sinclair, Angus, 1841-1919 · New York : J. Wiley · leaf 290

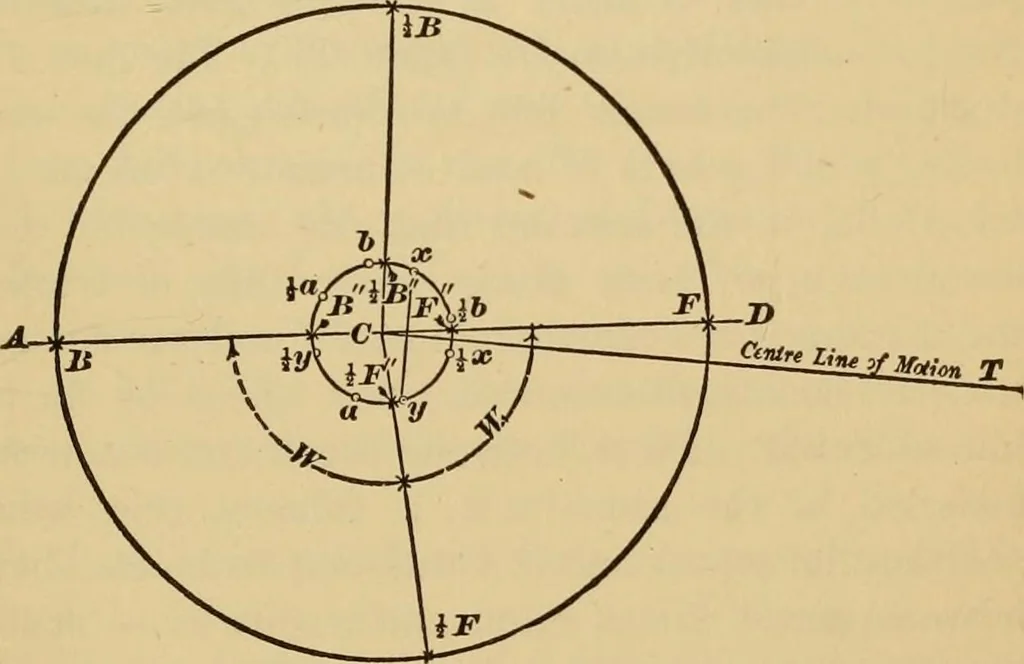

he line AD, and thecenter line of upper rocker-arm will be perpendicularto AD, and coincide with the line MN. Through thepoint Q draw a straight line perpendicular to the lineCT, and intersecting the arc RS in the point U: thenthe distance from the point U Xo the line J/7\^will bethe amount of the… … Problem 3 Fig. 23. the horizontal line AD, and find the positions of centerof crank-pin at full and half stroke; namely, the pointsF, IF, \B, B, as explained in Problem i, and shown in 266 LOCOMOTIVE ENGINE RUNNING. Fig. 21. Next draw the center line of motion as ex-plained in Problem 2 and Fig.…
Locomotives
