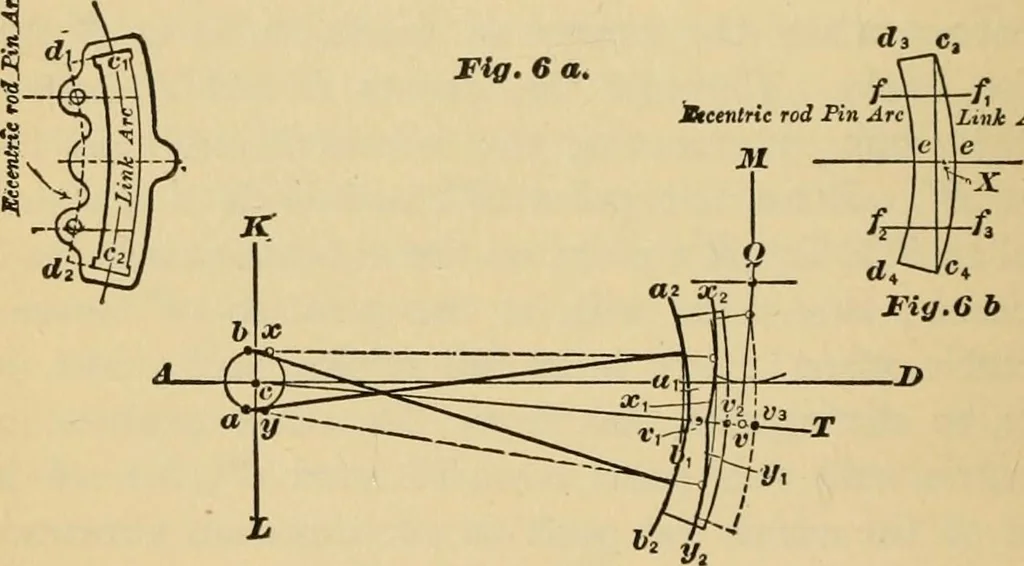

ke forward F, the forward eccentric will beat X. Half stroke forward \F, the forward eccentric willbe at \x. Full stroke back end B, the forward eccentric willbe at a. Half stroke back end \B, the forward eccentric willbe at \a. 268 LOCOMOTIVE ENGINE RUNNING. Full stroke forward F, the backward… … Problem 4 Fig. 24. Problem 4, Fig. 24. — To determine the correctle7igth of the eccentric-rods. — Let c be the center ofaxle. Through this point draw the horizontal line AD,also a line KL perpendicular to AD. The only pur-pose for which these two lines are drawn in this prob-lem, as well as the…
