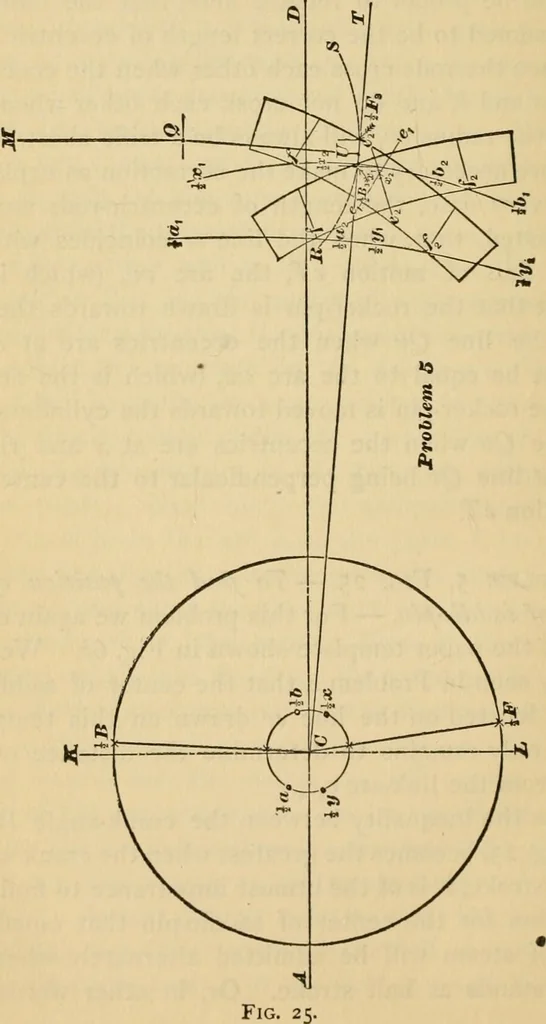

rmine the distance of thispoint from the link-arc c^Cy Since the inequality between the crank-angle W andW,, Fig. 23, becomes the greatest when the crank standsat half stroke, it is of the utmost importance to find sucha position for the center of saddle-pin that equal por-tions of steam will be… … LAYING OUT LINK-MOTION. 2/3 Let US commence this problem as we began the oth-ers ; namely, Through the center of axle C, Fig. 25,draw the horizontal line AD, also the vertical line LK.Find the position of crank at half stroke, as shown inFig. 21. Next find the position of center line of motionCT,…
