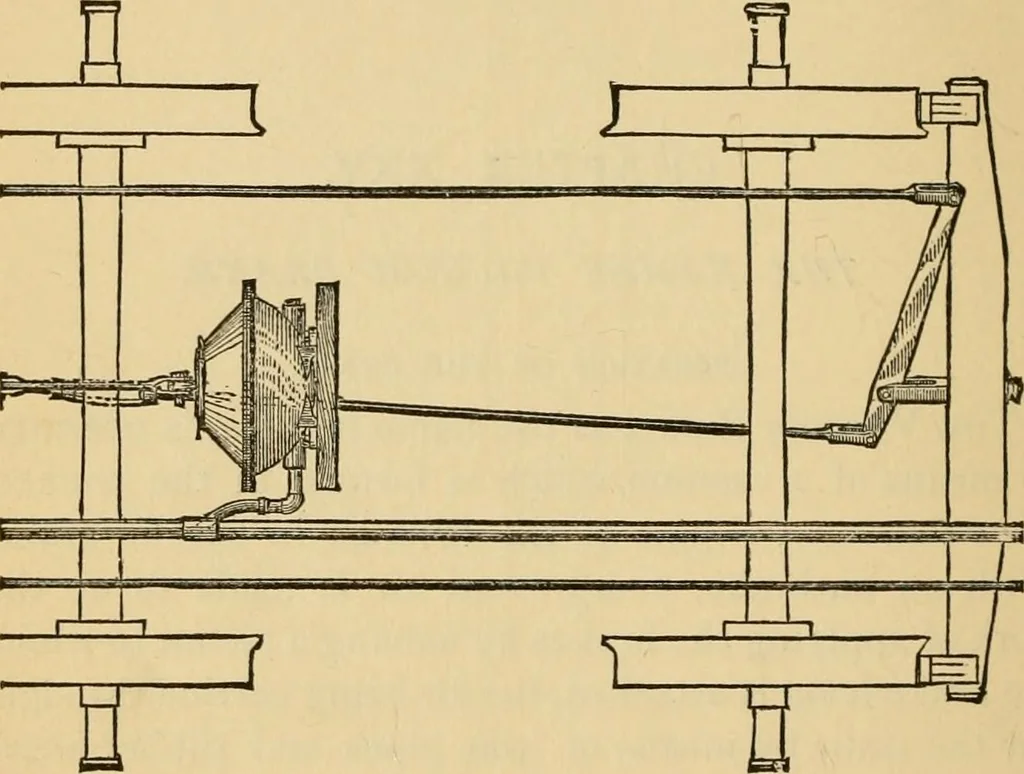

is securely fastened which performs the com-bined duties of cylinder and piston. It consists of akettle-shaped casting with a loose disk of heavy rub-bered duck fastened over its mouth ; the center of thedisk being provided with an iron plate, through whichpasses an eye-bolt for forming connection… … Fig. 35, THE EJECTOR. The position of the ejector in the cut can be clearlyseen in Fig. 36, where there is also a diaphragm to beseen under the deck where it is located when used tooperate driver brakes. The ejector is operated on thesame principle as the water injector, only it is used tolift air…
