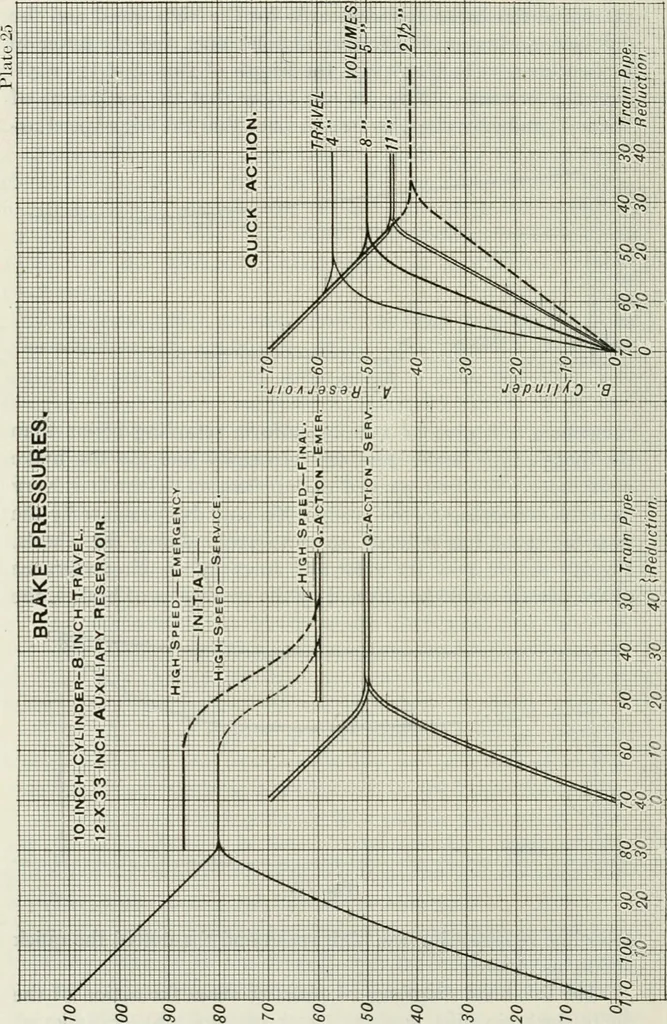

;^»- ->- Fig. 77. solid line representing the high speed and the dotted the quickaction, as before. The left-hand diagrams of plate 25 show the action of theair in the train pipe, auxiliary reservoir and brake cylinder ofboth the high speed and quick-action brakes, with service and 304… … •jiOAjasay /jDi/ixnY S3ynSS3tid —Jopui/^o 3>i0Jg BR.VKIXG. 305 emerg-ency stops. The single lines show the high-speed brake,the pressure in brake cylinder and auxiliary reservoir beingsliown by the ordinate, and that in the train pipe by the ab-seissa. For instanee, starting with a train pipe…
