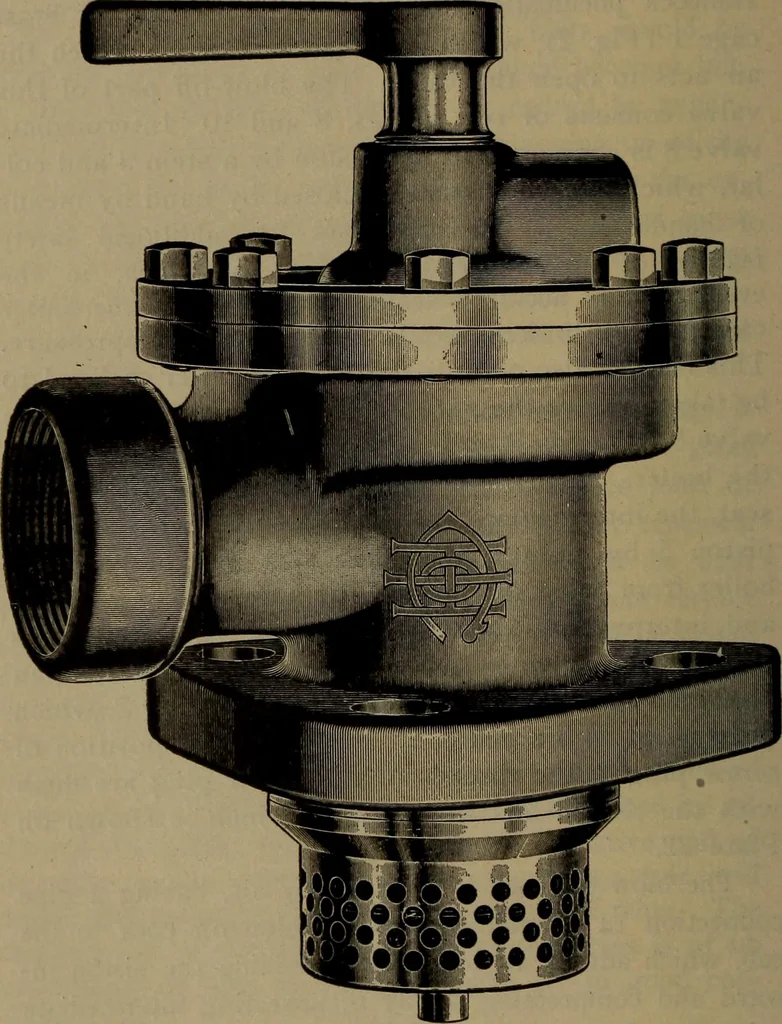

shown onPlate 22. The blow-off cock is operated by air, having a pipeconnection 14 extending from the blow-off cock to thecab, which admits air to piston 5, forcing the piston in-ward and compressing spring 6, unseating intermediatevalve 8 and forcing independent valve 10 from its seatagainst… … Plate 22, Figure I HANCOCK.MGUMATIC BLOW-OFF VALVE BLOW-OFF VALVE. 99
