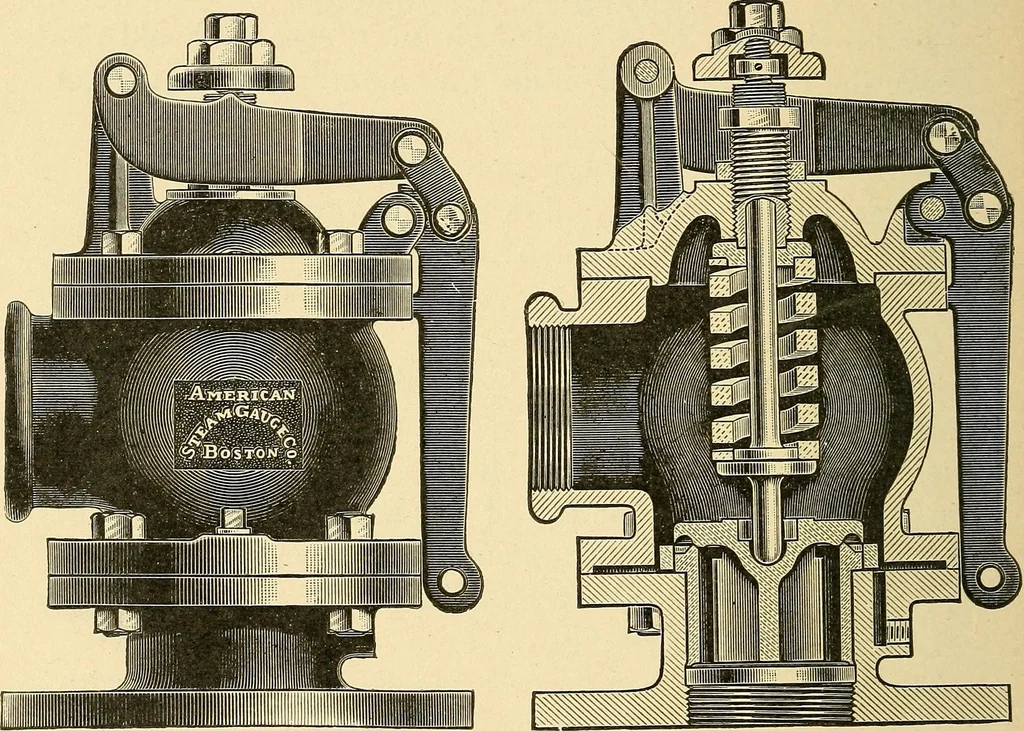

It should be placed where there is no possible chance ofcutting off communication with the boiler; that is, thereshould be no other valve between it and boiler. Usually, 48 PRACTICAL STATIONARY ENGINEERING it is placed on a flange especially provided for it directlyon top of the boiler. If valve… … ■Hi Figure 10 Figure 11. no condition raise the safety-valve before steam had droppedto pressure intended to blow off. Can a safety-valve be too large? Yes, if too large, the velocity of steam through the valvemay carry along with it the water in the boiler, therebylifting the water from the sheet.…
