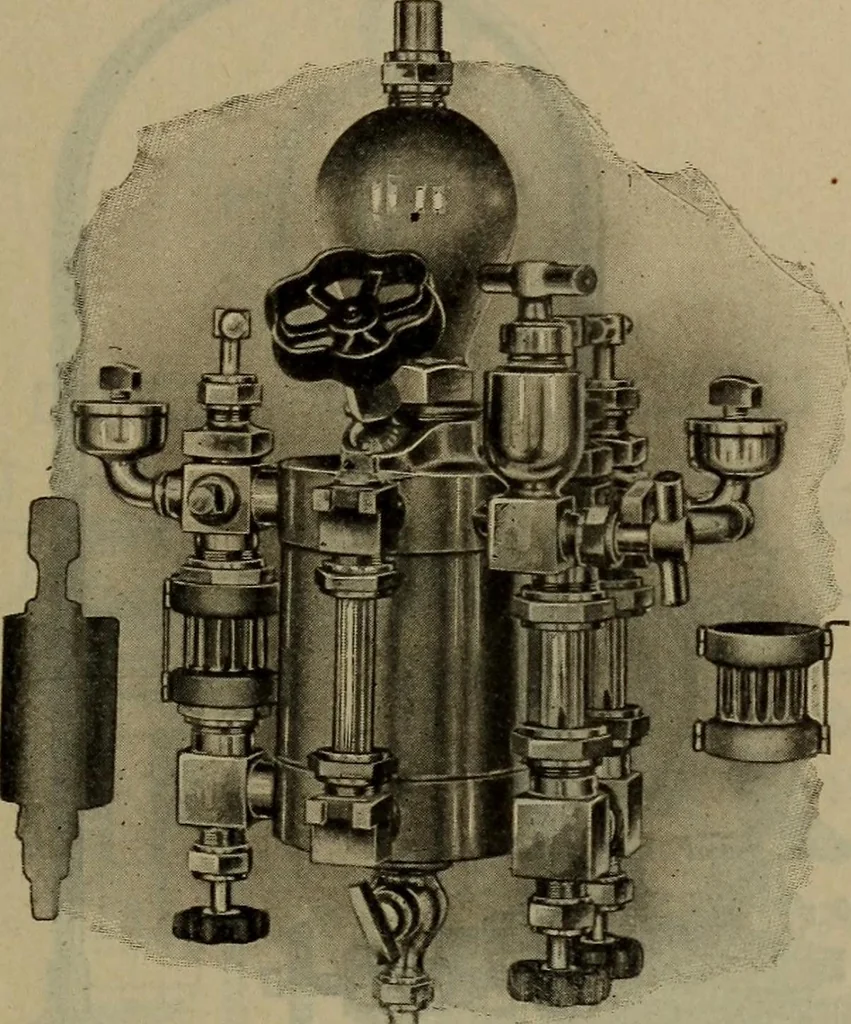

dome or thetop of the boiler and connected to a dry pipe leading tothe dome. B (Fig. 2) is a steam valve for controllingthe supply of steam to the lubricator; A is the filling plug, LOCOMOTIVE LUBRICATORS. 117 which is removed when the lubricator is filled. Auxiliaryoiler O is provided for each… … FIG. 1—PLATE 30. sight feed glass J is provided with a safety-valve F, sothat if the feed glass breaks, the safety-valve F and theregulating valve C can be closed to prevent the oil andsteam from escaping. HH are the oil pipes leading fromthe oil outlets of the lubricator to the right and left…
