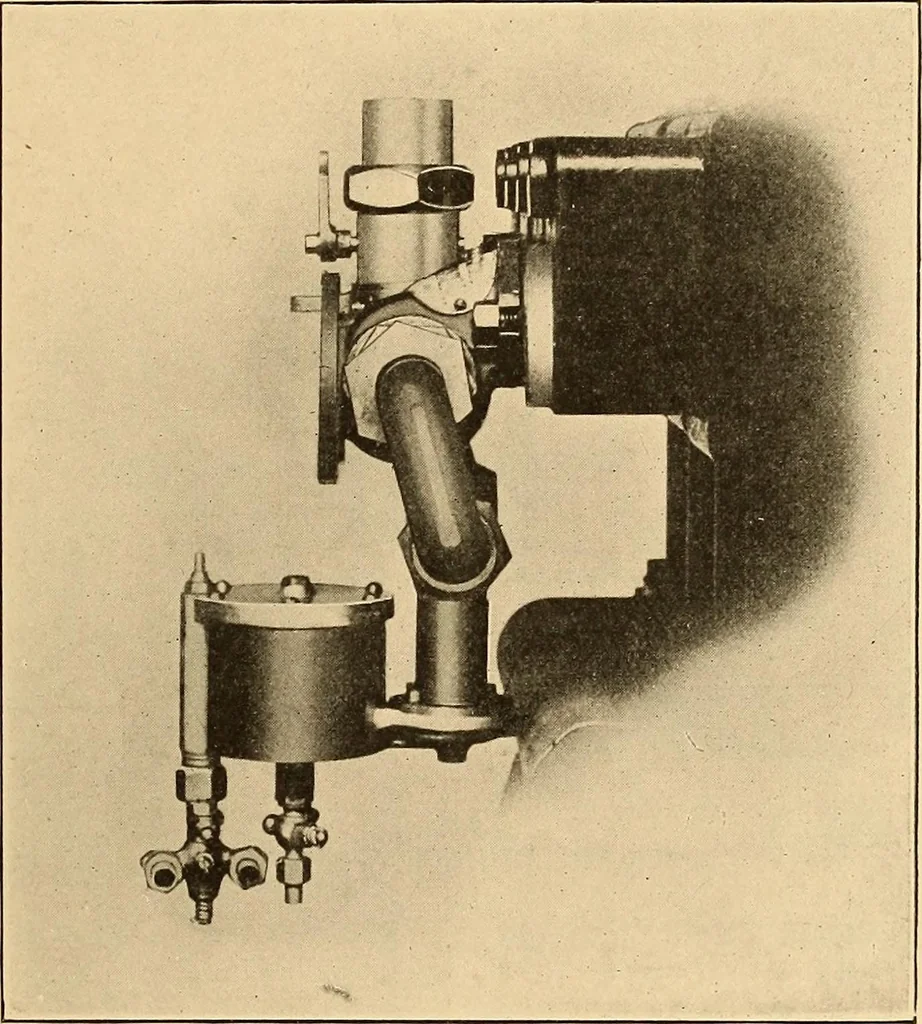

er gallon, a per-formance greatly in advance of that of any other vehicle.* mi ■■■■^misL^mr *m Jhh^B H Fig. 90.—Cottrell Carburettor as applied to Two-cylinder Engine. 117. The Cottrell Paraffin Carburettor.—This carburettoris illustrated in Figs. 90 and 91. It is also shown diagram- * See also… … Fig. 91.—Side view, of .Cottrell .Carburettor. fuel gets to the branch pipe it divides right and left toeither end of the vaporizer, M. M is shown in sectionat the lower right-hand side of the figure. It consists of acorrugated pipe which is surrounded by hot exhaust gasesand conveys in its…
