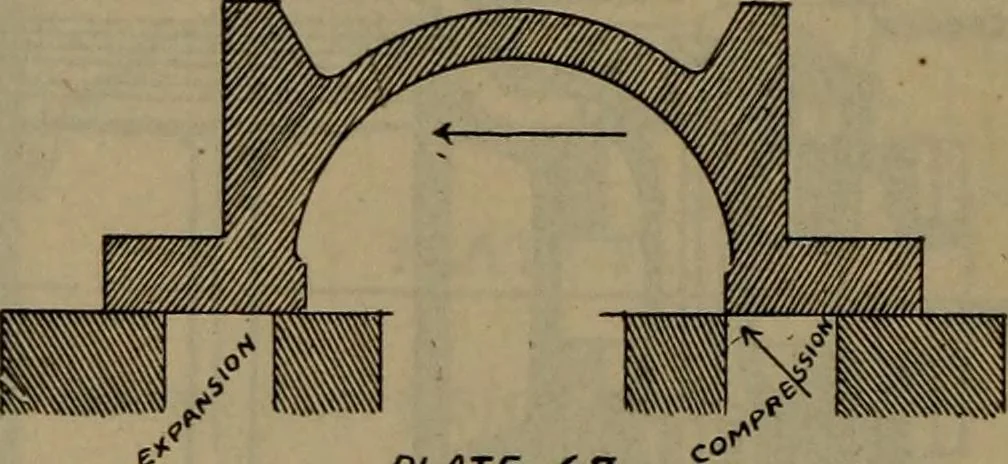

e ad-mission and outside exhaust, while others are outside ad-mission and inside exhaust. INSIDE AND OUTSIDE ADMISSION VALVES. An inside admission valve is one in which thesteam enters the steam port of the cylinder from theinside edge of the valve (Plate 59) and is exhaustedfrom the outer edge of… … PLATE 6Z. On an inside admission valve the motion of the valveis in the opposite direction to that of the piston motion atthe beginning of the stroke (Plate 59), while on an out-side admission valve the movement of the valve is in thesame direction as that of the piston at the beginning ofthe…
