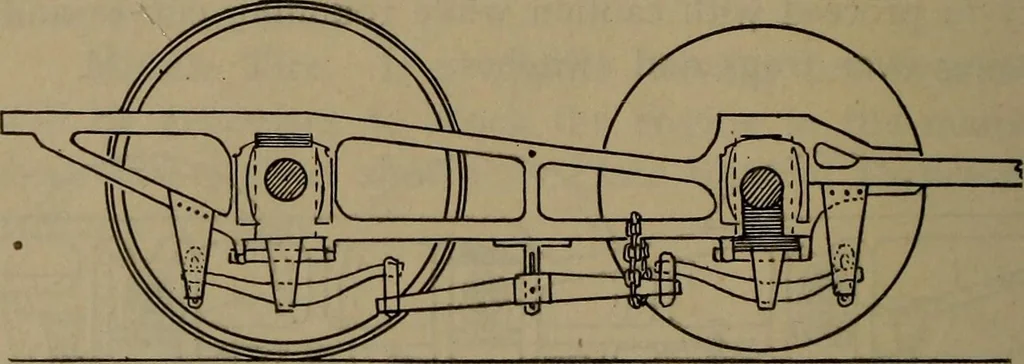

PLATE 89. should be chained up. The weight on the driving box ofall types of engines with a broken tire must be relieved,when the pedestal is not strong enough to withstandthe weight. If the forward tire is broken on an enginehaving an underhung spring rigging, and the equalizeris chained up, a… … PLATE 90. Back Tire, Eight-Wheel Engine. If a back tire onan eight-wheel engine breaks, it should be blocked upin the same manner as for the tire on a back driver oia ten-wheel engine (Plates 88 or 91). Trailer Tires. If a trailer tire breaks, run thewheel up on a wedge a little higher than the…
