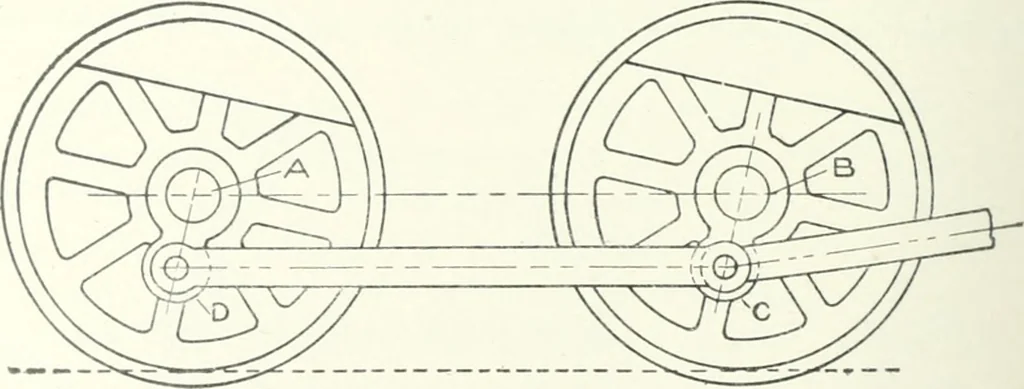

Fiff. 46. arc of a circle whose center is B and radius BC, If in place ofBC the fixed link is formed as shown in Fig. 48, being providedwith a slot whose radius is BC and center is B, the pin C on the endof the connecting rod will have exactly the same motion that itwould if guided by the crank BC.… … Fig. iT. is gradually increased, the slot will become nearer and nearer tobeing straight, so that the linkage shown in Fig. 49, where theslot is straight, may be said to be the limiting case of the linkageshown in Fig. 48. This is the linkage which we have in the crank,connecting rod, crosshead and…
