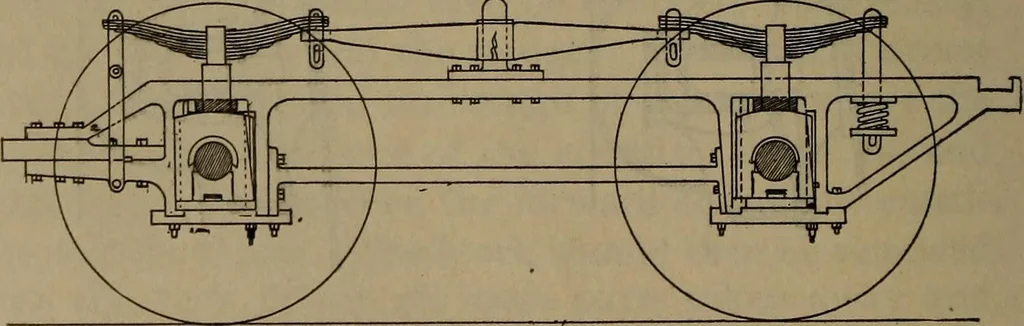

PLATE 94. Equalizer with Overhung Spring Rigging. If the equalizer of an engine with overhung spring riggingis broken at the fulcrum, the front driver should berun on a wedge, a block placed on top of the backdriving box and the forward driver run down. The backdriver should then be run on a wedge,… … PLATE 95. BREAKDOWNS. 217 Forward and Back Spring with Underhung Rigging. If the front spring of an underhung eight-wheel en-gine is broken, the back driver should be run on a wedge,a block placed on top of the front driving box and theback driver run off the wedge. The front driver shouldthen be…
