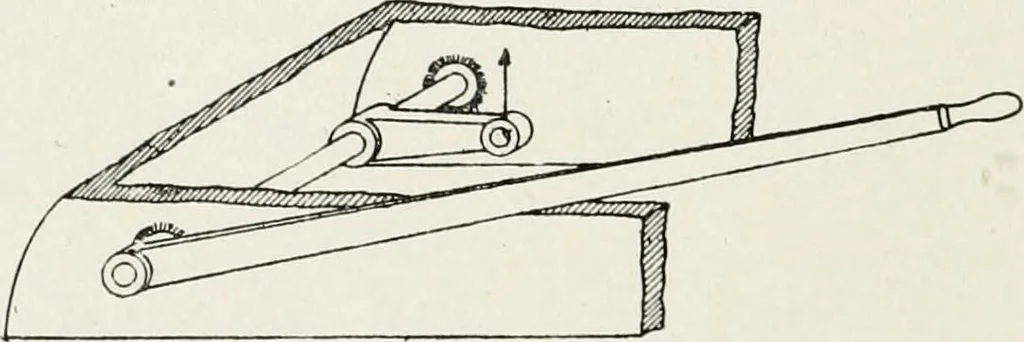

d is slotted toallow for a movement of the lever arm between the points x andx. The weakening of the bed due to this slot need not be con-sidered a serious matter. With a long and shallow bed, however,the movement of the arm will be small and will give a very slightmovement to the sliding block.… … Fig. 125, B. In case the movement of the sliding block is desired greaterthan that allowed here, the lever may be arranged as shown inFig. 125, B. ALTERNATE DESIGNS 261 Second Alternate, Design No. 1
