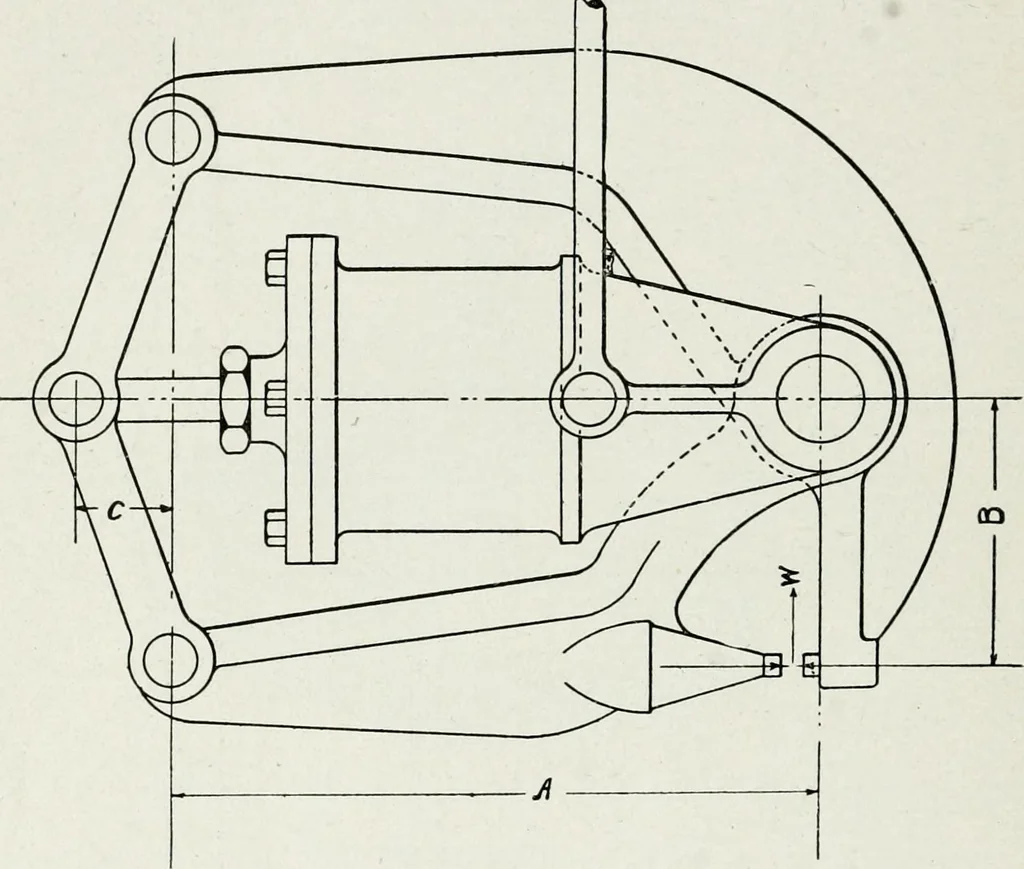

MuDRiNG Riveter167. Assignment.— W = (25,000 to 100,000) lb. p = (air pressure, 80 to 100) lb. per sq. in. T =B = (8tol6) in. A = (5 to 8 in. C (min.) when S = dc?grees, Total^die movement (3 to 5) in. This design may be modified by having the cylinder enclosedwithin the base if desired. In such an… … Fig. 169.Lever Riveter 168. Assignment.— TF = (20,000 to 60,000) lb. p = (air pressure, 80 to 100) lb. per sq. in. T = (throat, 8 to 12) in. A = (20 to 36) in. C (min.) when 6= degrees. Total die movement (2 to 3) in. When the arms are in their inner positions the cylinder mustnot touch them.…
