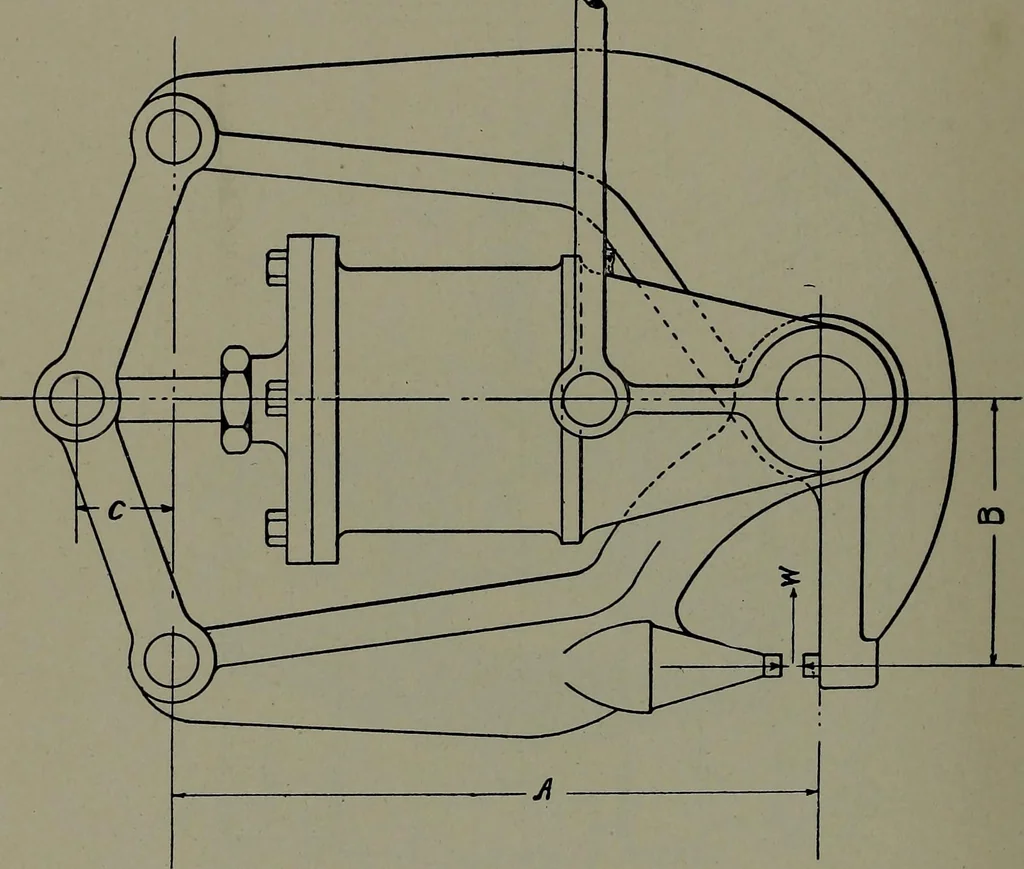

Fig. 168. MuDRiNG Riveter 167. Assignment.— T7= (25,000 to 100,000) lb. p] = (air pressure, 80 to 100) lb. per sq. in. T =5 = (8 to 16) in. A = (5 to 8 in. C (min.) when 6 = degrees. Total die movement (3 to 5) in. This design may be modified by having the cylinder enclosedwithin the base if… … Fig. 169.Lever Riveter 168. Assignment.— TF = (20,000 to 60,000) lb. p = (air pressure, 80 to 100) lb. per sq. in. T = (throat, 8 to 12) in. A = (20 to 36) in. C (min.) when 6 = degrees. Total die movement (2 to 3) in. When the arms are in their inner positions the cylinder must-not touch them.…
