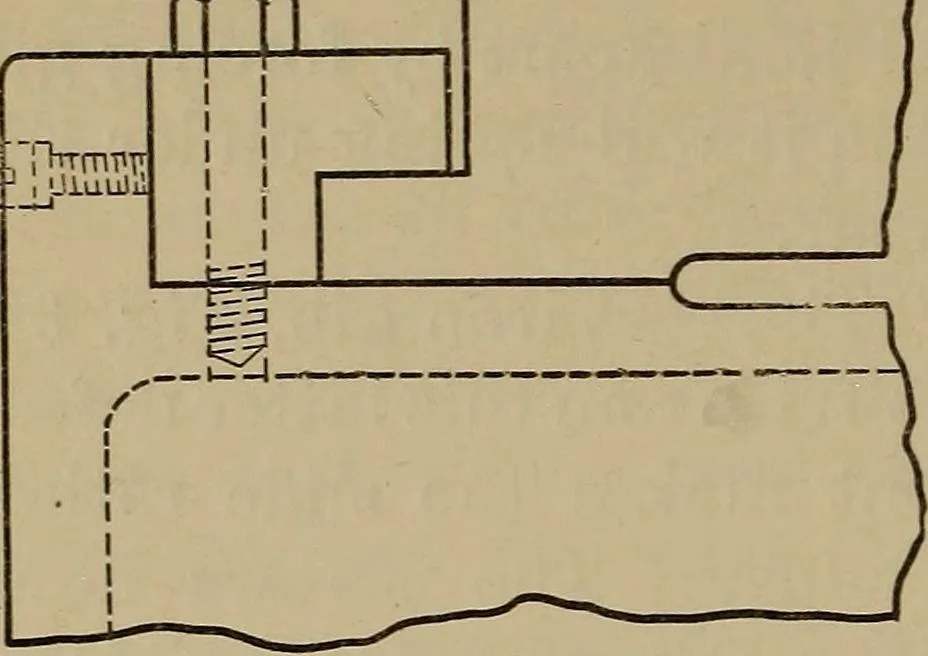

90 MACHINE DESIGN. Fig. 32 shows a portion of the ram of a shapingmachine and illustrates the use of an L gib for adjust-, •— 1 ment in two directions. C jTJtrmT … Fig. 33 shows a gibbedslide for holding downthe back of a lathe car-riage with two adjust-ments. The gib g is taperedand adjusted by a screwand nuts. The saddleof a planing machine orthe table of a shaper usually has a rectangular gibbed Fig. 32.
