Benjamin, Charles H[enry], 1856- [from old catalog] · New York, H. Holt and company · leaf 70

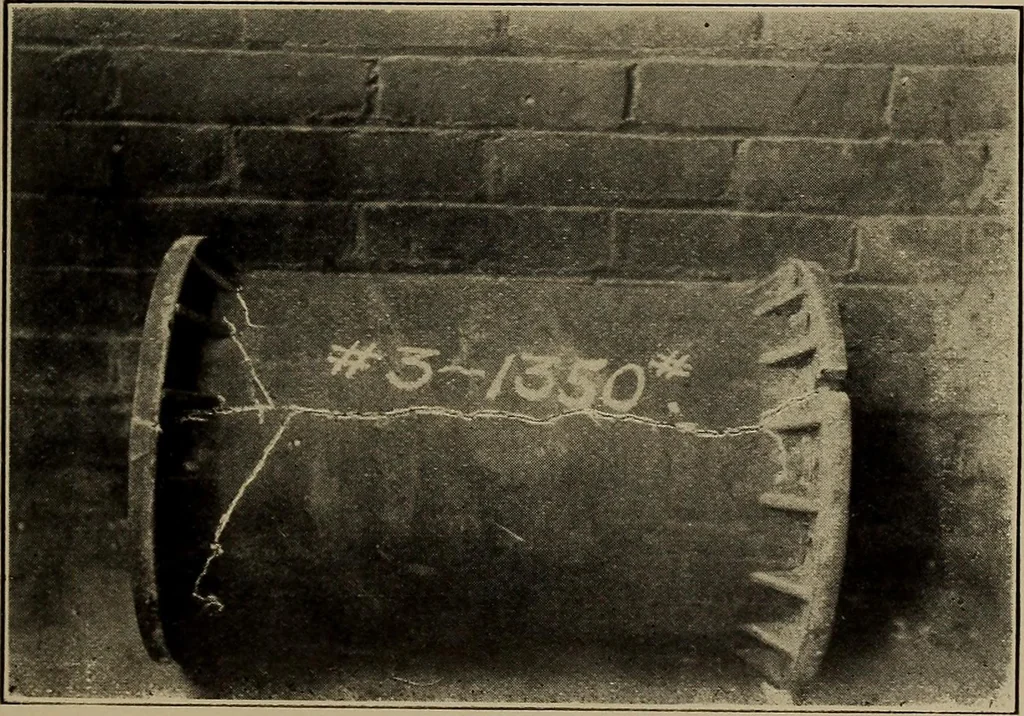

flanges were of thesame thickness as the shell and were re-enforced bysixteen triangular brackets as shown in Fig. 13. The fractures were all longitudinal there being butlittle of the tearing around the shell which was. somarked a feature of the former experiments. Thisshows that the brackets… … Fig. 13. Fractured Cylinder. STEAM CYLINDERS.TABLE XII. BURSTING PRESSURE OF CAST-IRON CYLINDERS. 47 InternalDiameter. AverageThickness. BurstingPressure. Value of c. s=14- 10.125 0.766 1350 .0213 9040 10.125 0.740 1400 .0152 10200 10.125 0.721 1350 .0126 9735 10.125 0.720 1200 .0177 9080 Average…
Machine design
