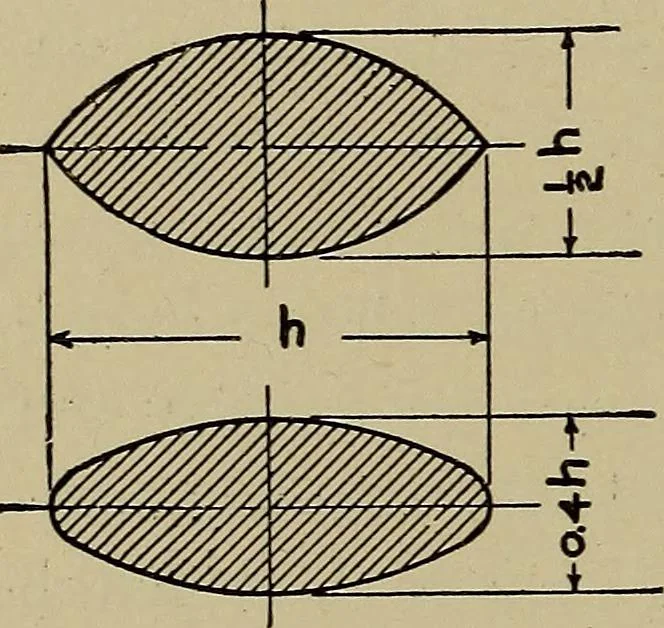

y be P subjected to is-^=, and, therefore, the maximum external moment at the 104 MACHINE DESIGN hub is 2PL N From mechanics, the internal moment of resistance SIof any beam section is —-, and equilibrium of the beam can be satisfied only when the external moment is equal to the internal momentof… … either of these sections the fraction is approximately equal to 0.0393/t3. For con-venience—the error caused being on thesafe side—L may be taken as equal to the Fig. 61. Elliptical Arms fuU radius of the puUey R wnence ^ = 0.0393OT (61) in which S may be from 2,000 to 2,250 for cast iron. Taking…
